TECHNICAL DATA OF THE BMW X3.

Select model

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW (hp) 135 (184)
Torque in Nm 300
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm³ 1998
Nominal power in kW (hp)/1/min 135 (184)/5000-6500
Nominal torque in Nm/1/min 300/1350-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 8.4
Maximum speed in km/h 215
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 8.4-7.6
CO2 emissions, combined WLTP in g/km [5] 192-172
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.4
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

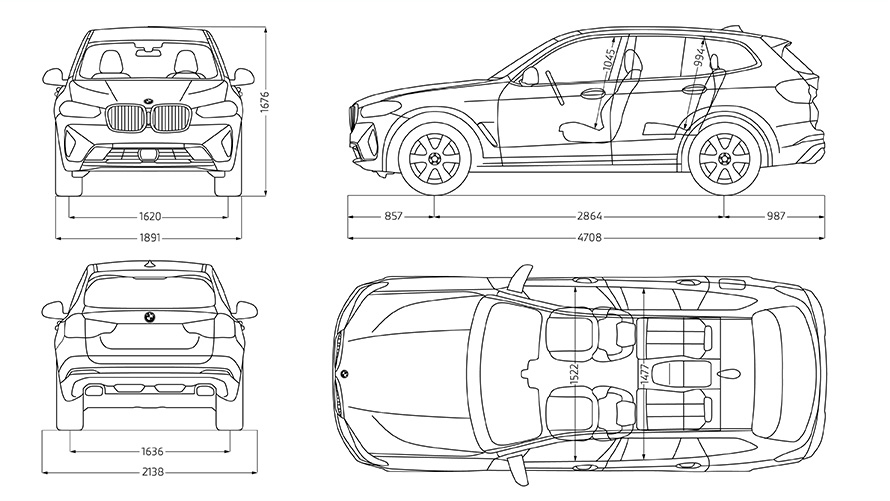

Dimensions/weights

Length/width/height in mm 4708/1891/1676
Wheelbase in mm 2864
Curb weight in kg [8] 1875
Luggage capacity in l 550-1600
Fuel capacity in l 65
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2400/100

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW (hp) 180 (245)
Torque in Nm 350
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm³ 1998
Nominal power in kW (hp)/1/min 180 (245)/5000-6500
Nominal torque in Nm/1/min 350/1560-4800

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 6.6
Maximum speed in km/h 235
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 8.5-7.6
CO2 emissions, combined WLTP in g/km [5] 194-173
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.4
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4708/1891/1676
Wheelbase in mm 2864
Curb weight in kg [8] 1885
Luggage capacity in l 550-1600
Fuel capacity in l 65
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2400/100

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW (hp) 265 (360)
Torque in Nm 500
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 6
Displacement in cm³ 2998
Nominal power in kW (hp)/1/min 265 (360)/5200-6500
Nominal torque in Nm/1/min 500/1900-5000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 4.9
Maximum speed in km/h 250
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 9.5-8.8
CO2 emissions, combined WLTP in g/km [5] 216-199
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.4
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4713/1897/1676
Wheelbase in mm 2864
Curb weight in kg [8] 1985
Luggage capacity in l 550-1600
Fuel capacity in l 65
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2400/100

Total Powertrain [1][2]

Powertrain type Diesel
Power in kW (hp) 140 (190)
Torque in Nm 400
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm³ 1995
Nominal power in kW (hp)/1/min 140 (190)/4000
Nominal torque in Nm/1/min 400/1750-2500

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 7.9
Maximum speed in km/h 213
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 6.5-5.8
CO2 emissions, combined WLTP in g/km [5] 171-151
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.4
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4708/1891/1676
Wheelbase in mm 2864
Curb weight in kg [8] 1915
Luggage capacity in l 550-1600
Fuel capacity in l 68
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2400/100

Total Powertrain [1][2]

Powertrain type Diesel
Power in kW (hp) 210 (286)
Torque in Nm 650
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 6
Displacement in cm³ 2993
Nominal power in kW (hp)/1/min 210 (286)/4000
Nominal torque in Nm/1/min 650/1500-2500

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 5.7
Maximum speed in km/h 245
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 7.0-6.2
CO2 emissions, combined WLTP in g/km [5] 183-162
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.4
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4708/1891/1676
Wheelbase in mm 2864
Curb weight in kg [8] 2010
Luggage capacity in l 550-1600
Fuel capacity in l 68
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2400/100

Total Powertrain [1][2]

Powertrain type Diesel
Power in kW (hp) 250 (340)
Torque in Nm 700
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 6
Displacement in cm³ 2993
Nominal power in kW (hp)/1/min 250 (340)/4400
Nominal torque in Nm/1/min 700/1750-2250

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 4.9
Maximum speed in km/h 250
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 7.3-6.6
CO2 emissions, combined WLTP in g/km [5] 192-173
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 0.4
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4713/1897/1676
Wheelbase in mm 2864
Curb weight in kg [8] 2080
Luggage capacity in l 550-1600
Fuel capacity in l 68
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2400/100

Total Powertrain [1][2]

Powertrain type Petrol - plug-in hybrid
Power in kW (hp) 215 (292) [9]
Torque in Nm 420 [9]
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 4
Displacement in cm³ 1998
Nominal power in kW (hp)/1/min 135 (184)/5000-6500
Nominal torque in Nm/1/min 300/1350-4000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW (hp) 80 (109)/- [10]
(Nominal) torque in Nm 265

Performance

Acceleration 0–100 km/h in s 6.1
Maximum speed in km/h 210
Electric top speed in km/h 135

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 2.6-2.0
CO2 emissions, combined WLTP in g/km [5] 59-45
Energy consumption, combined WLTP in kWh/100 km [5] 20.5-18.9
Electric range, WLTP in km [6] 42-50

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 10.8
Maximum charging power AC/DC in kW 3.7
Charging time DC 10–80% in min -
Charging time AC 0–100% in h 4.0

Dimensions/weights

Length/width/height in mm 4708/1891/1676
Wheelbase in mm 2864
Curb weight in kg [8] 2065
Luggage capacity in l 450-1500
Fuel capacity in l 50
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/100
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions of the BMW X3.

  • BMW X3 xDrive30e:
    Fuel consumption in l/100 km (combined): 2.6-2.0
    CO2 emissions in g/km (combined): 59-45

    BMW X3 xDrive30i:
    Fuel consumption in l/100 km (combined): 8.5-7.6
    CO2 emissions in g/km (combined): 194-173

    BMW X3 M40i:
    Fuel consumption in l/100 km (combined): 9.5-8.8
    CO2 emissions in g/km (combined): 216-199

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Fuel consumption and CO2 emissions of the BMW X3.

BMW X3 xDrive30e:
Fuel consumption in l/100 km (combined): 2.6-2.0
CO2 emissions in g/km (combined): 59-45

BMW X3 xDrive30i:
Fuel consumption in l/100 km (combined): 8.5-7.6
CO2 emissions in g/km (combined): 194-173

BMW X3 M40i:
Fuel consumption in l/100 km (combined): 9.5-8.8
CO2 emissions in g/km (combined): 216-199


The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

[1]
 Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.


[2] For plug-in hybrid: Electric drive depending on battery charging level.

[3] For plug-in hybrid: At temperatures below freezing, the fully electric drive system is only available after a few kilometres of driving, once the battery has heated to operational temperature.

[4] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists.In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.



For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp


Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.


[5] For plug-in hybrid: Weighted, combined (EC AC Charge Weighted)

[6] Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

[7] The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

[8] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

[9] Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value). Electric drive depending on battery charging level.

[10] Provisional figures; any missing figures were unavailable at the time of publication.
