THE BMW X3.
THE BMW X3.
Details, equipment and technical data for the BMW X3.
MODELS AND EQUIPMENT.
Models and equipment lines for the BMW X3.

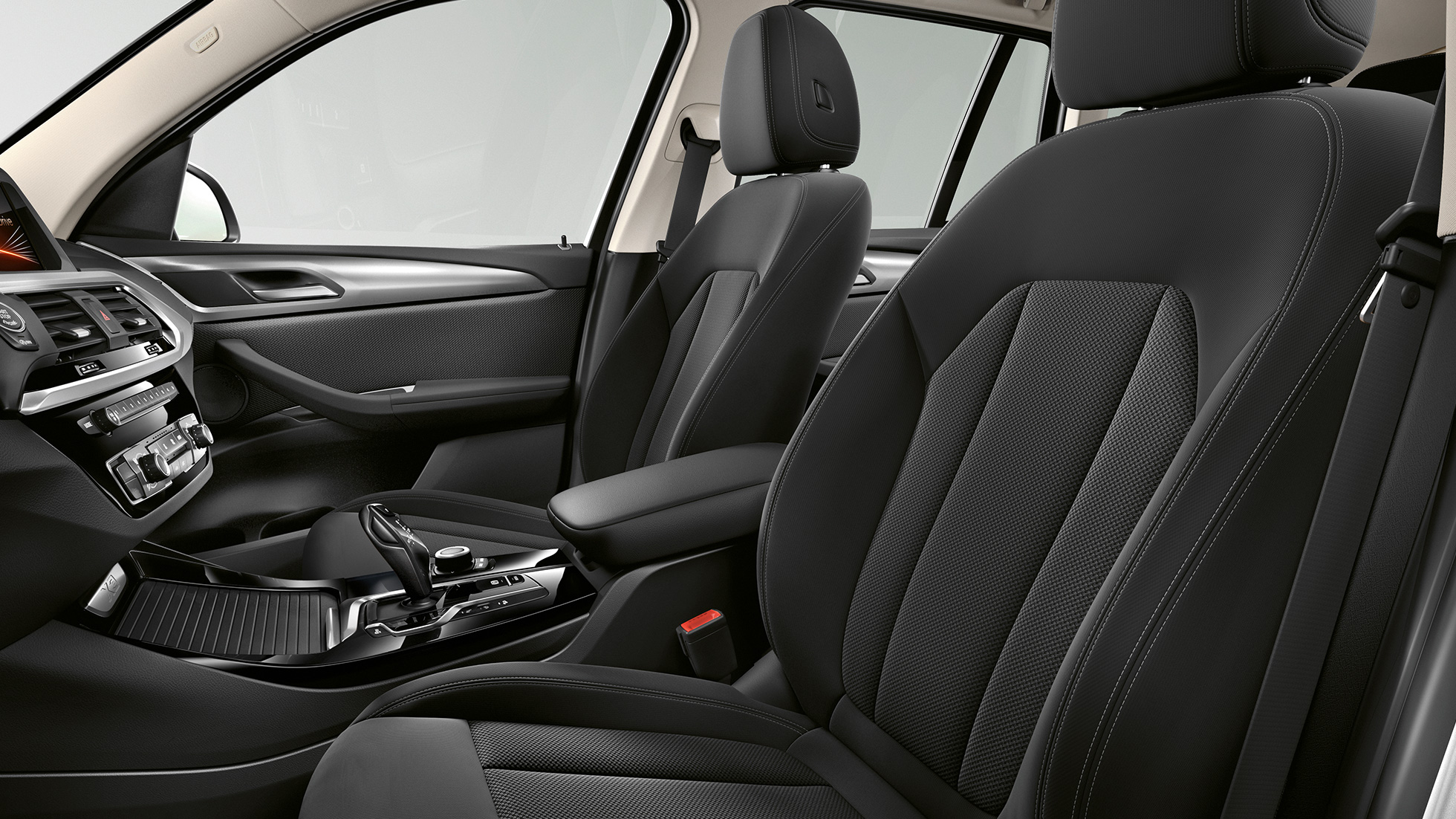

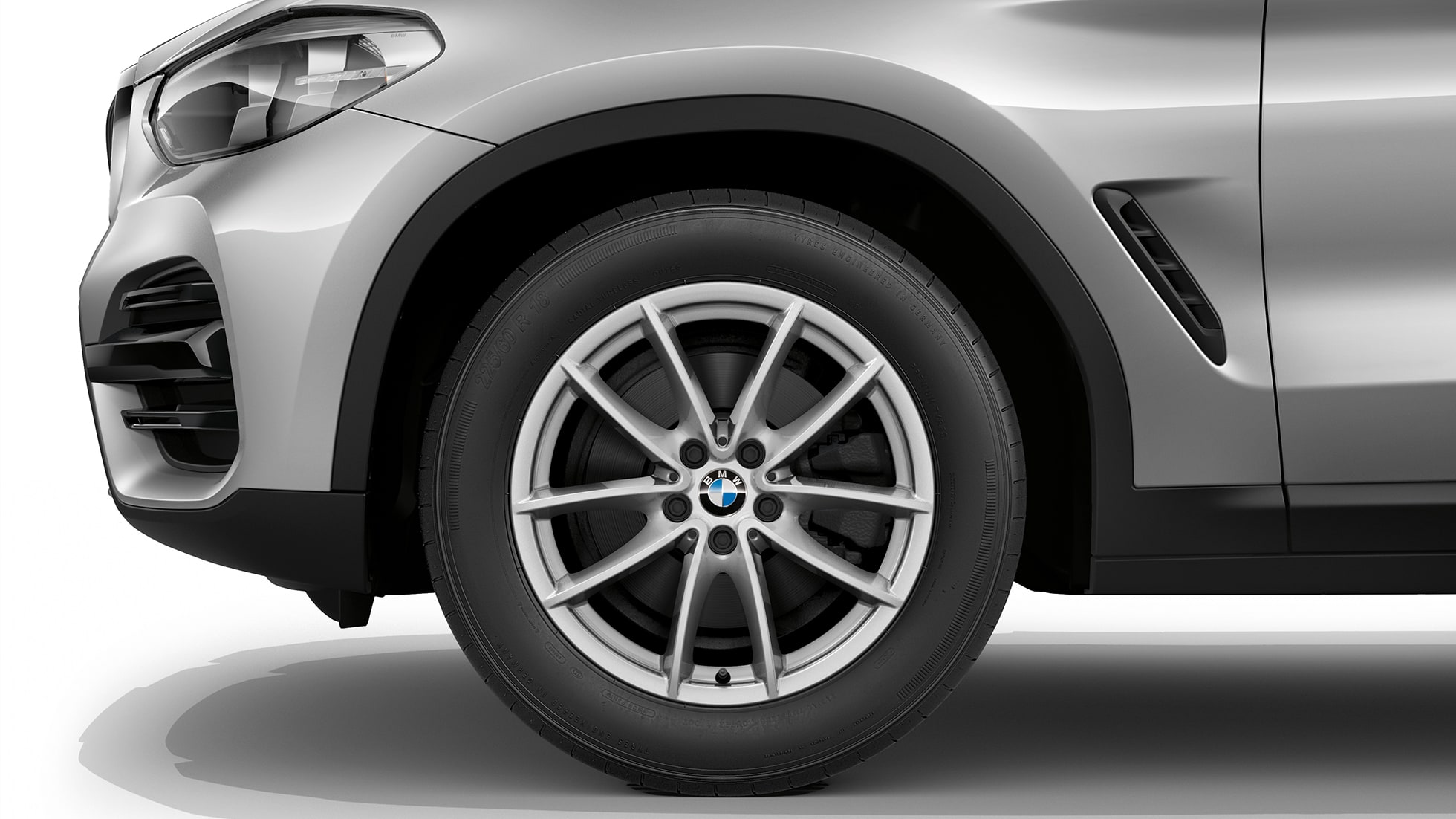

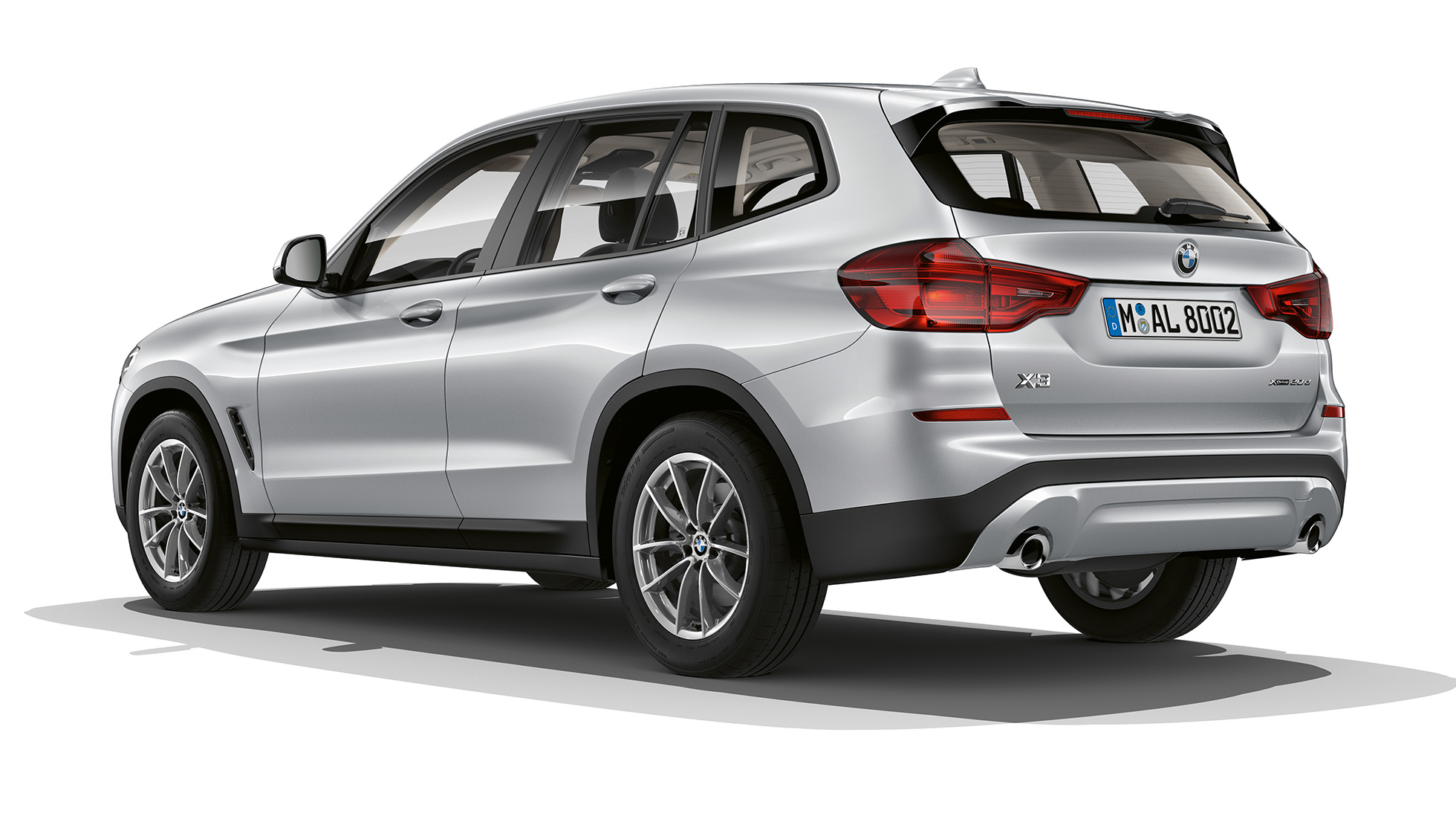

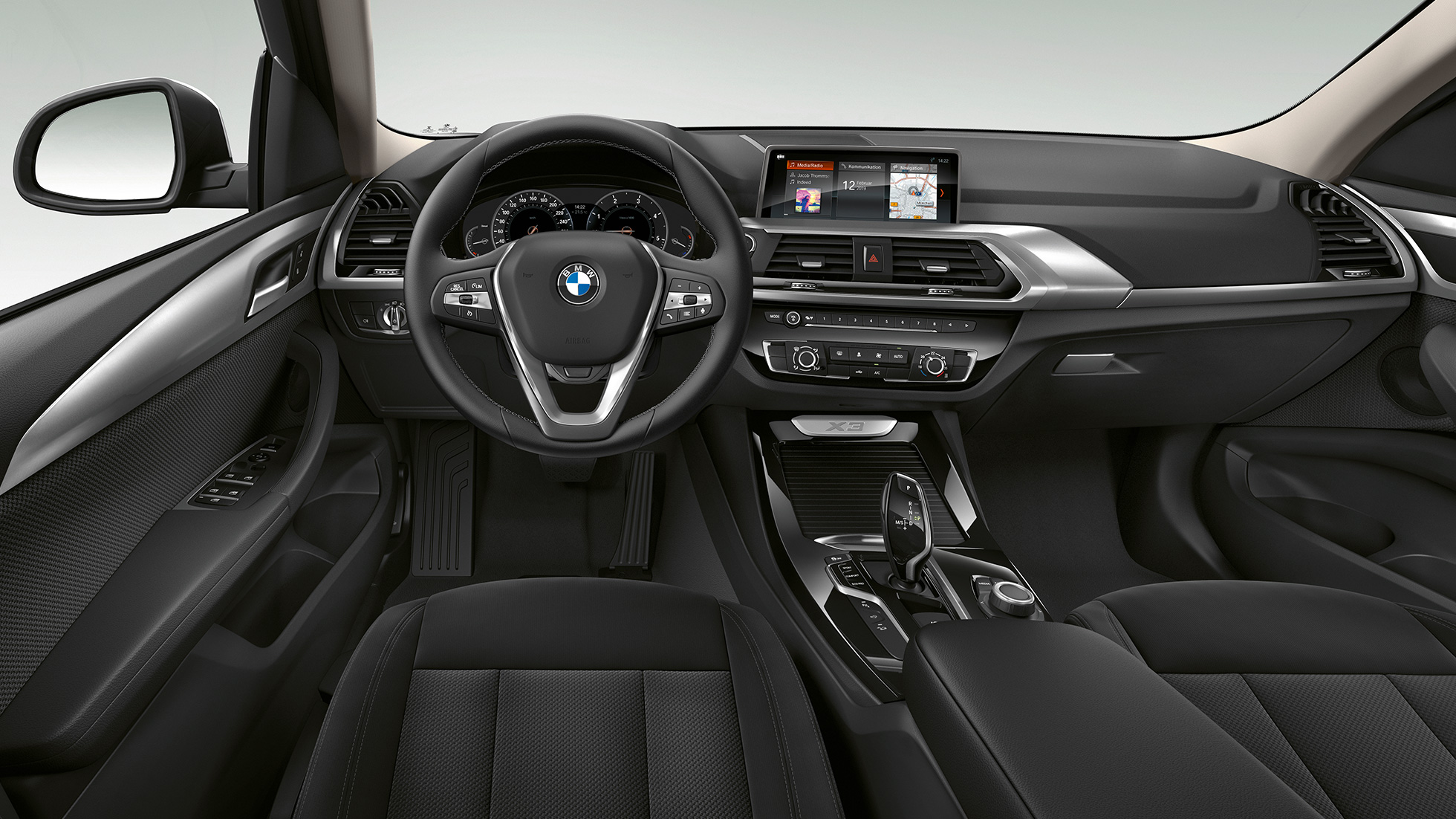

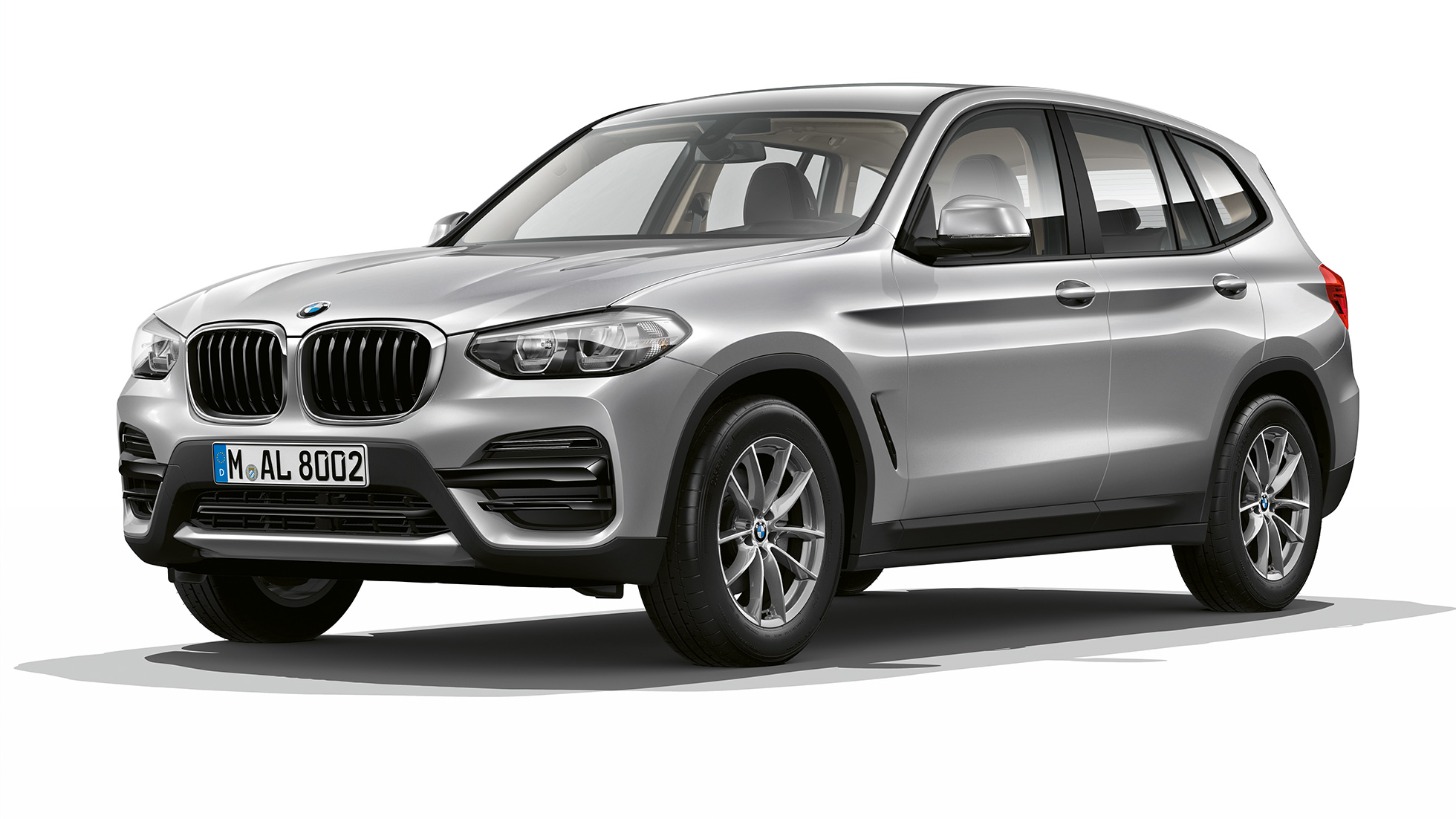

The BMW X3 is a captivating basic model with a dynamic profile and a huge passion for adventure. Its character is highlighted by technical features such as the intelligent BMW xDrive all-wheel drive and a package of functional special extras. Additional convenience and enhanced safety are ensured with a larger fuel tank, practical storage options and a interior mirror with automatic dazzle function.
The BMW X3 is a captivating basic model with a dynamic profile and a huge passion for adventure. Its character is highlighted by technical features such as the intelligent BMW xDrive all-wheel drive and a package of functional special extras. Additional convenience and enhanced safety are ensured with a larger fuel tank, practical storage options and a interior mirror with automatic dazzle function.

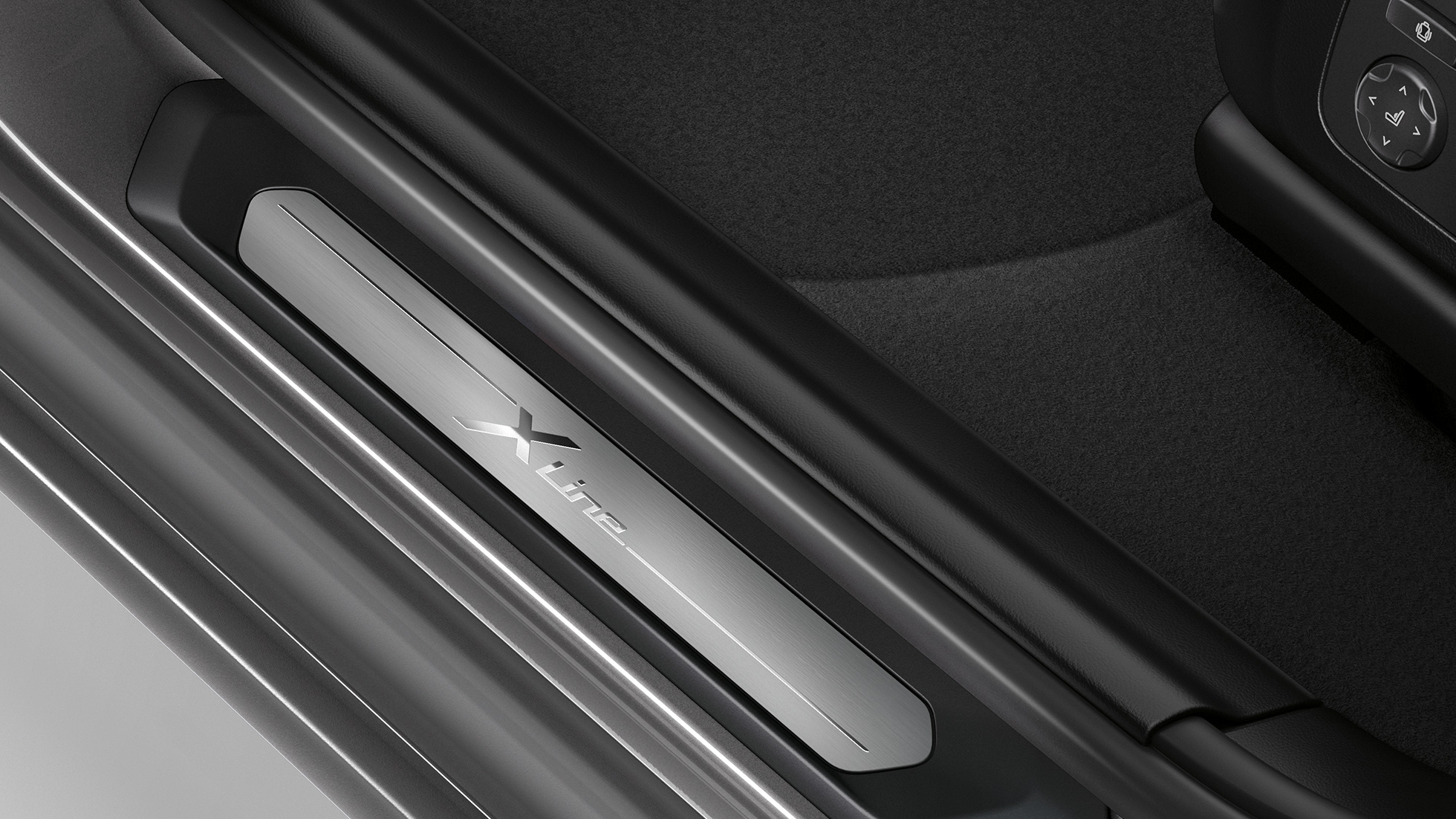

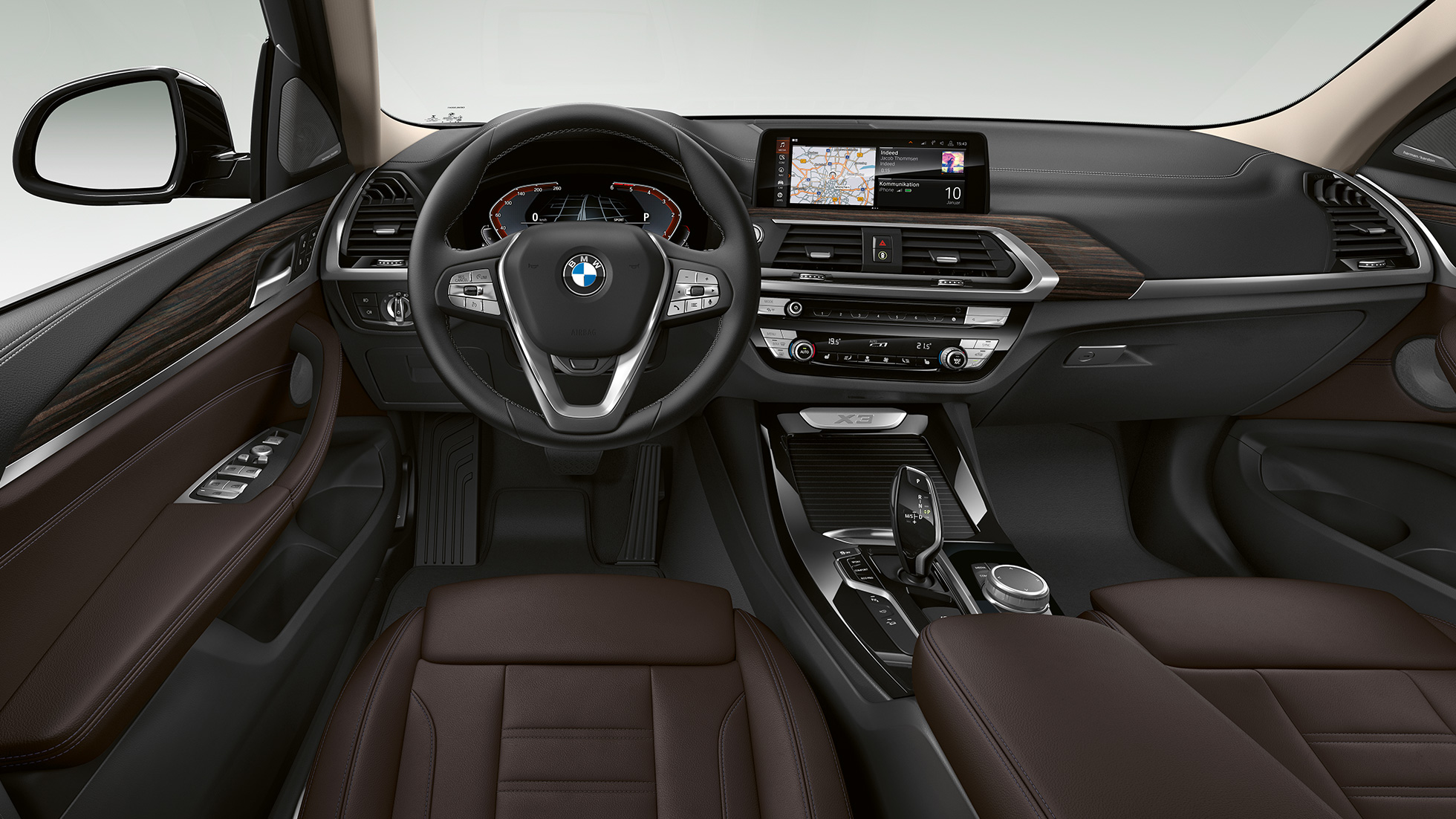

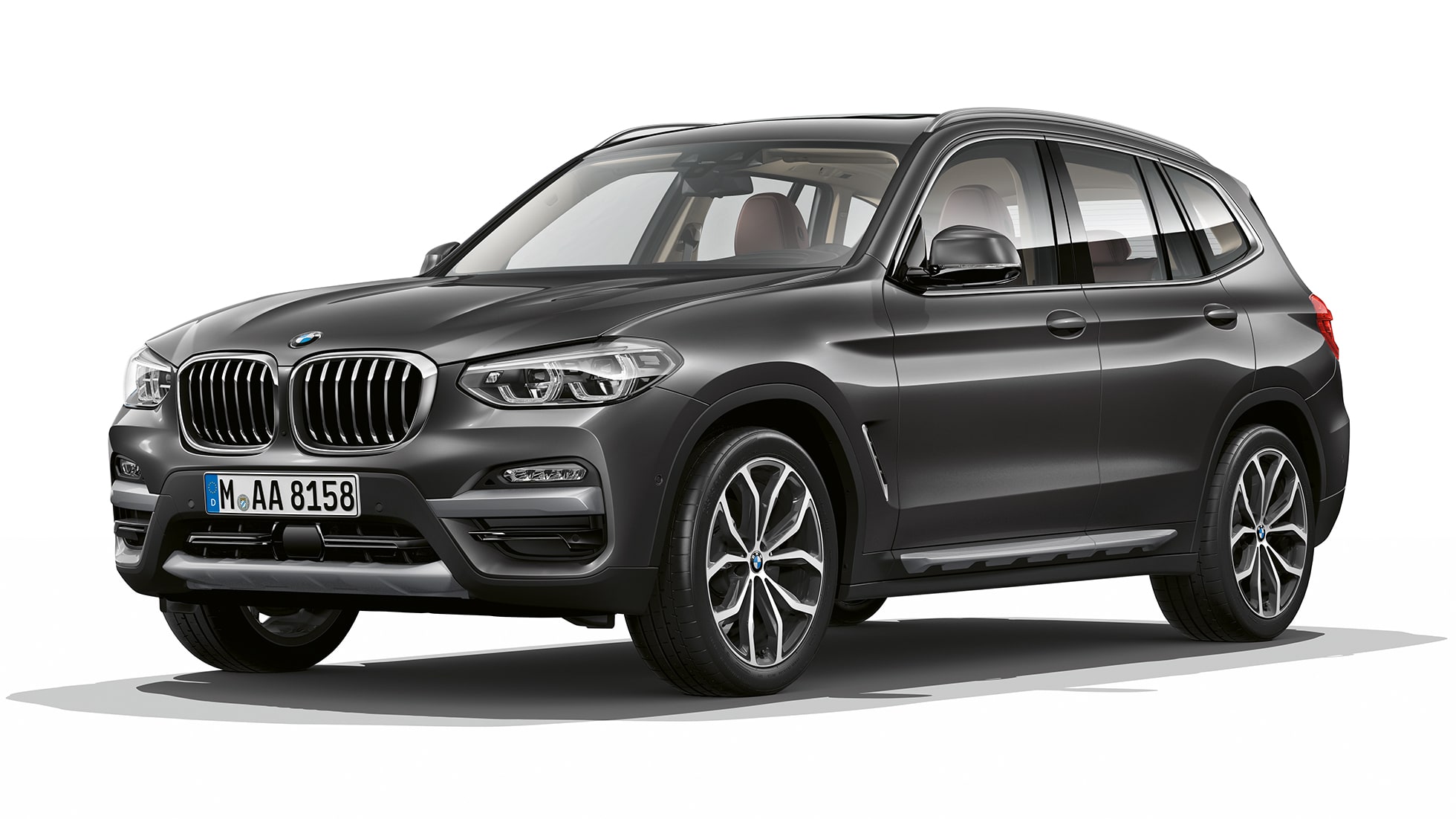

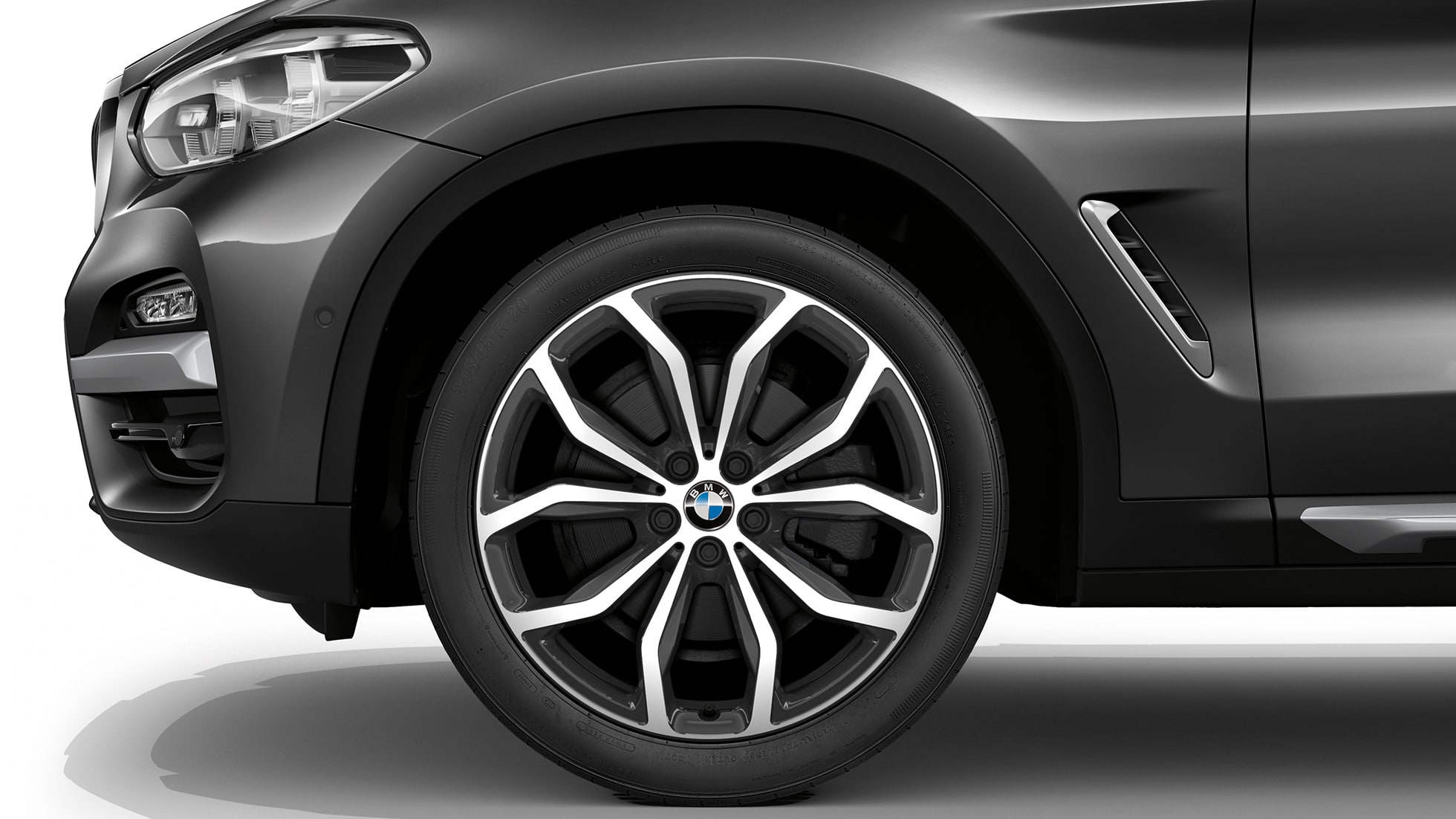

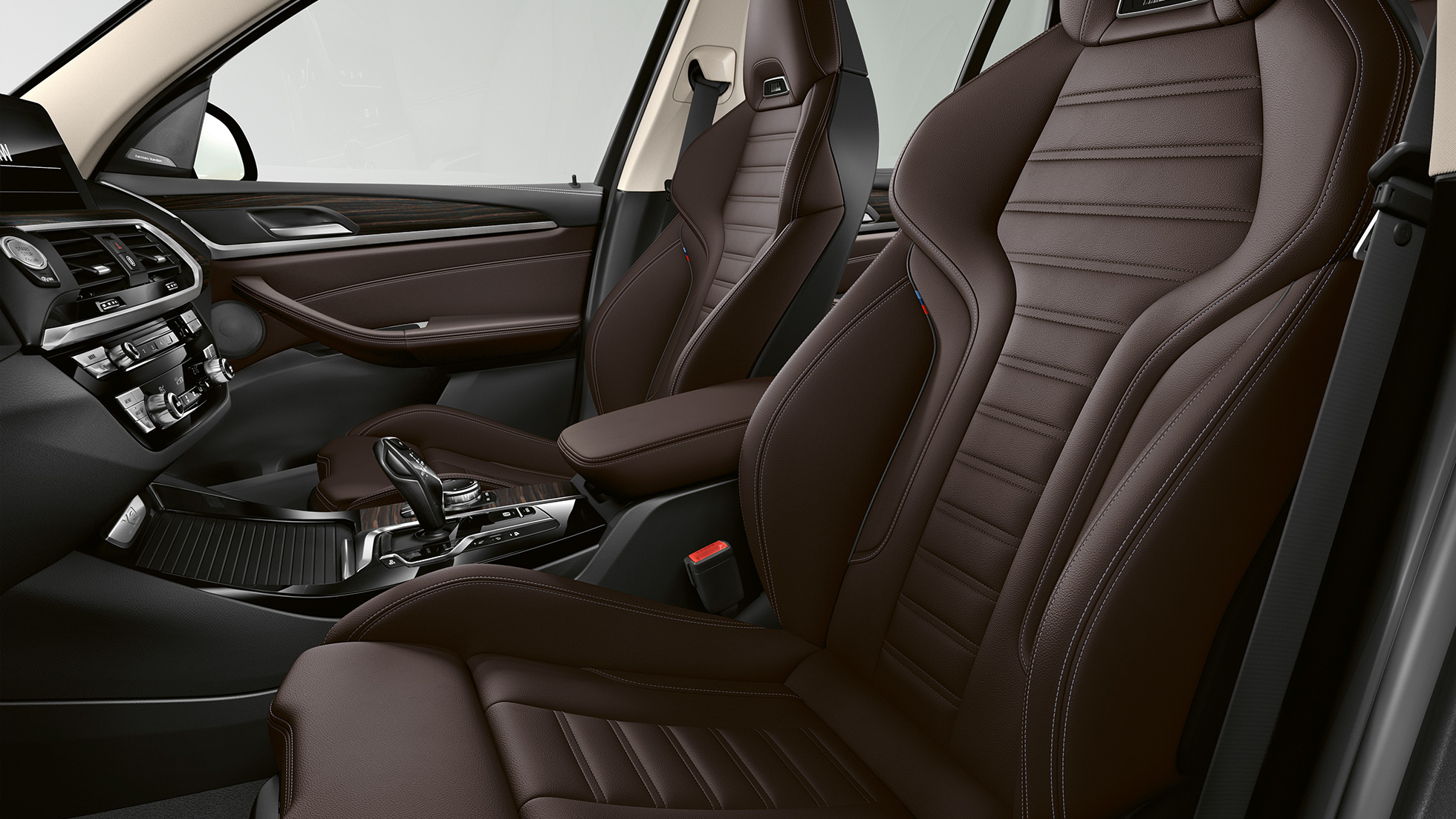

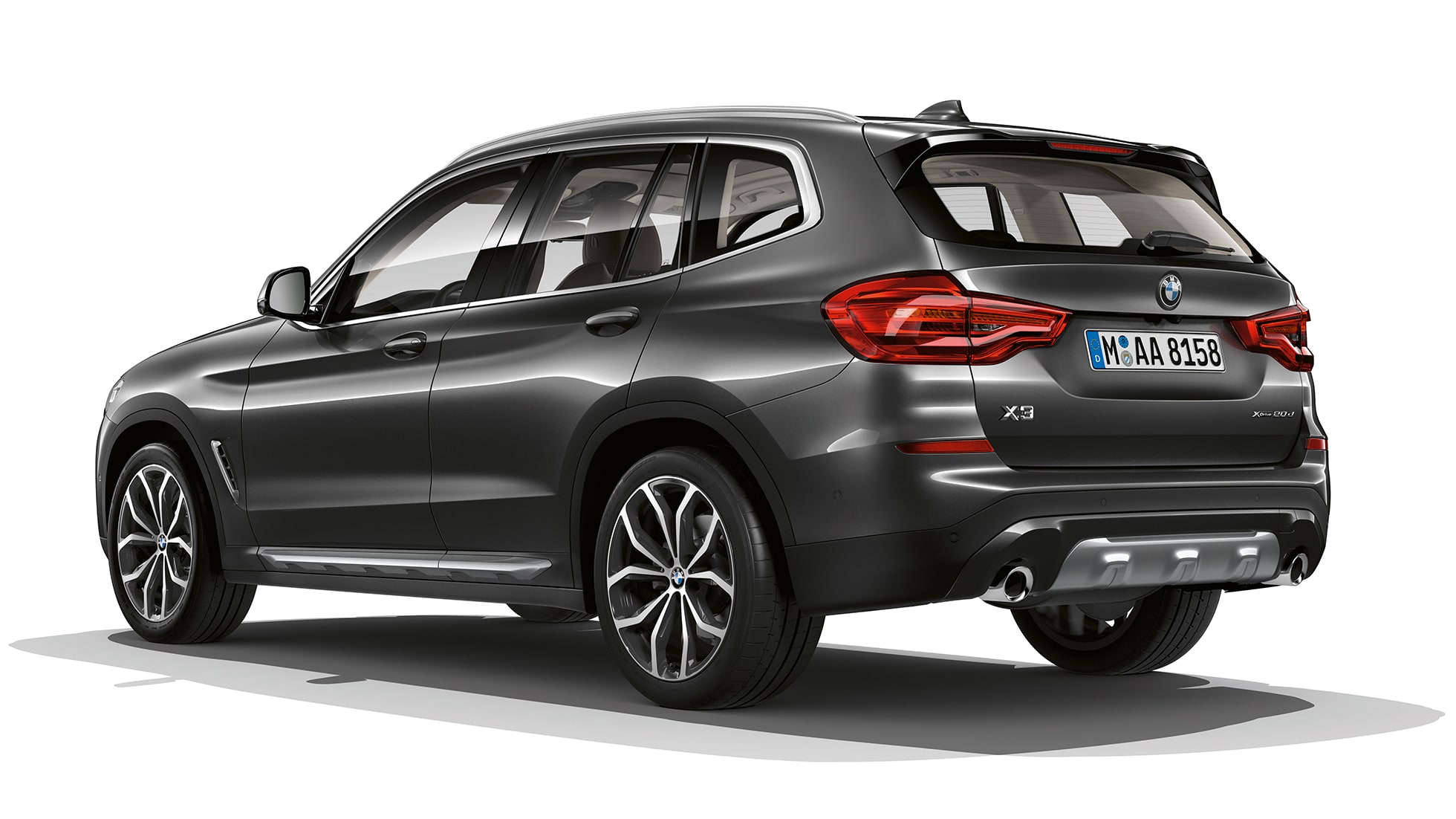

The Model xLine underlines the powerful character of the BMW X3. Particularly effective are the specific design elements in matt Aluminium on the vertical slats of the BMW kidney grille, the side skirt panelling as well as the underbody protection at the front and rear. Additional highlights include the optional 20" light alloy wheels Y-spoke 695 style in Orbit Grey gloss-lathed as well as the first-class sport seats for driver and front passenger together with exclusive interior trims in 'Fineline' Cove.
The Model xLine underlines the powerful character of the BMW X3. Particularly effective are the specific design elements in matt Aluminium on the vertical slats of the BMW kidney grille, the side skirt panelling as well as the underbody protection at the front and rear. Additional highlights include the optional 20" light alloy wheels Y-spoke 695 style in Orbit Grey gloss-lathed as well as the first-class sport seats for driver and front passenger together with exclusive interior trims in 'Fineline' Cove.

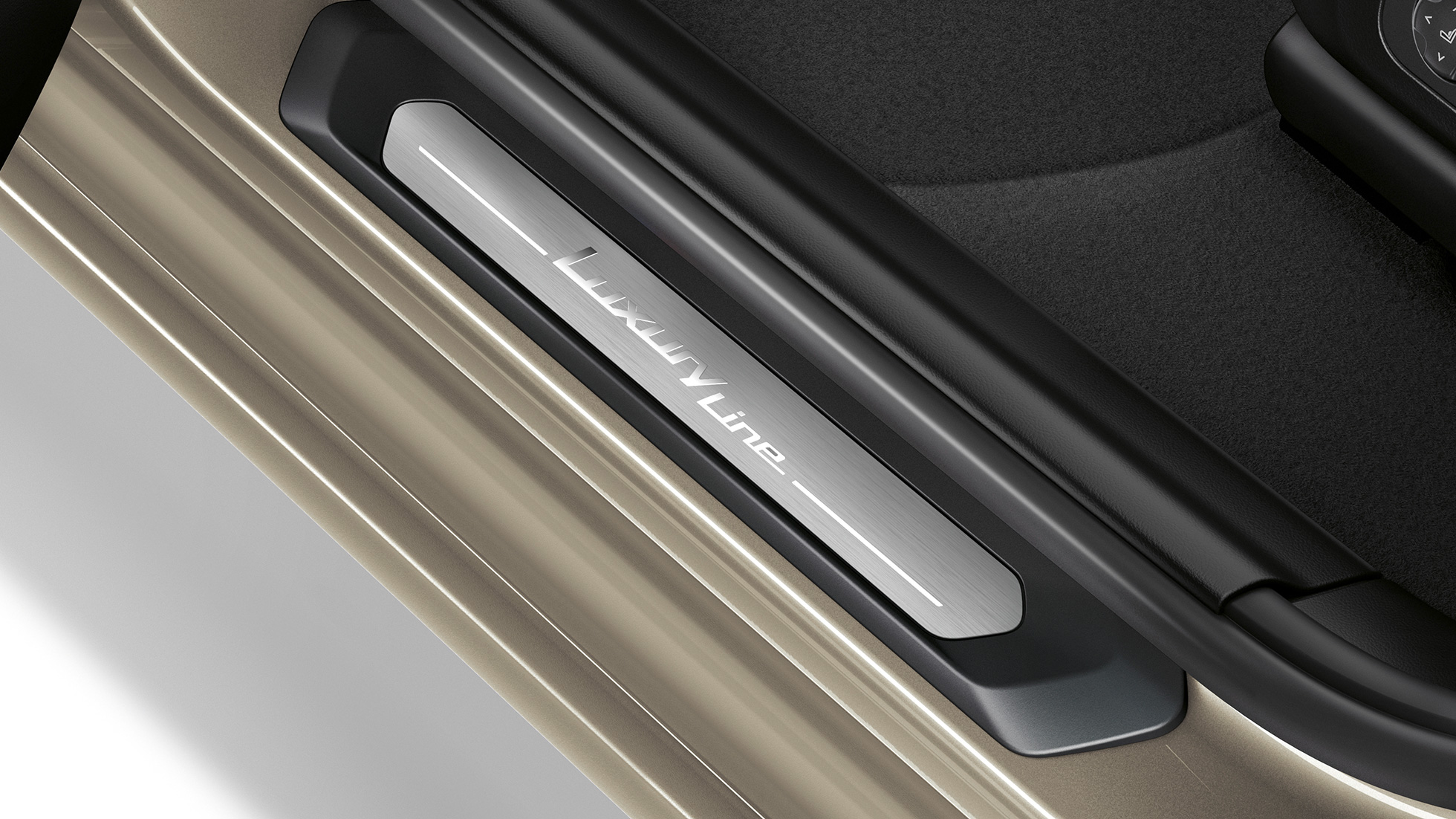

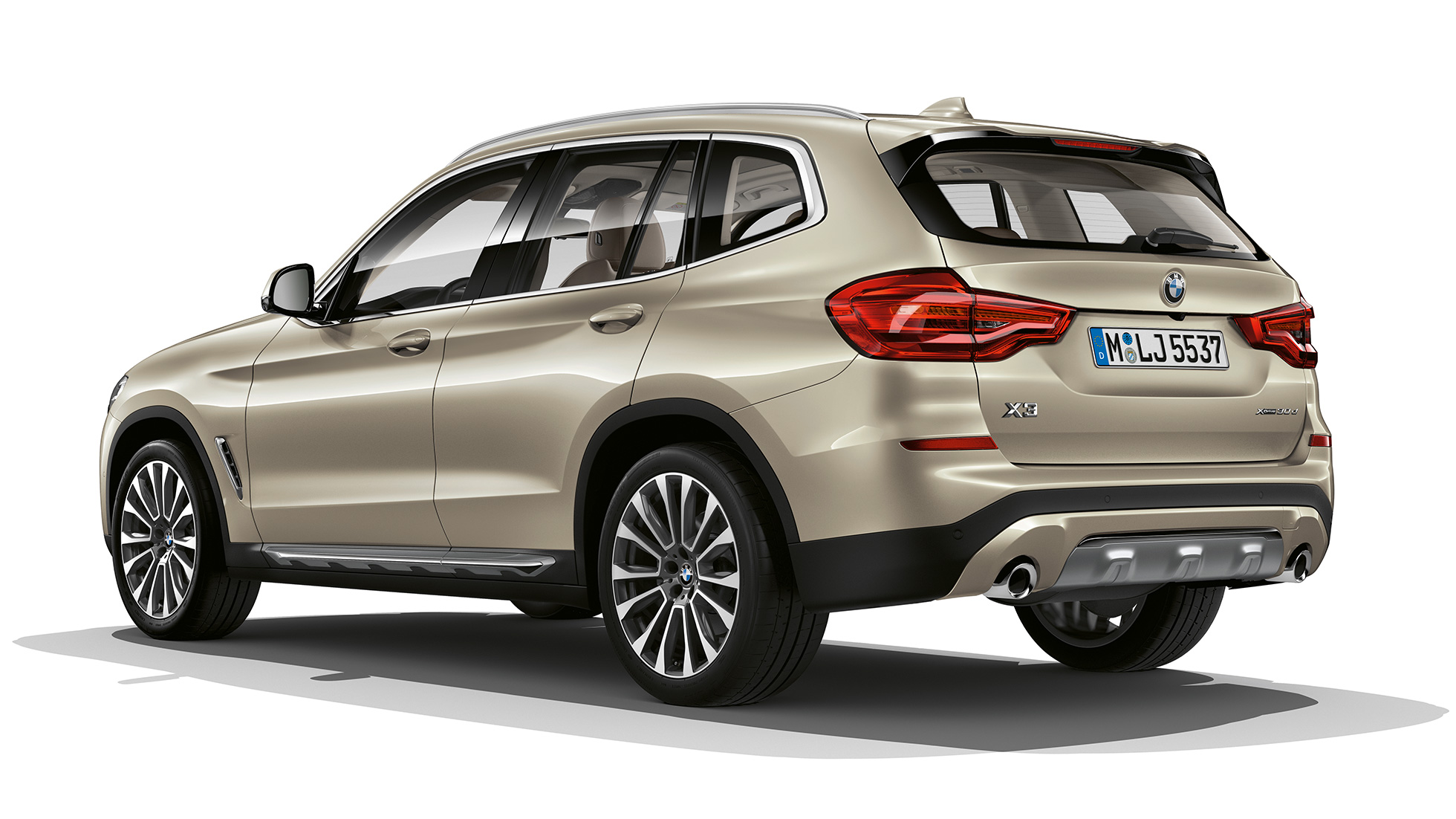

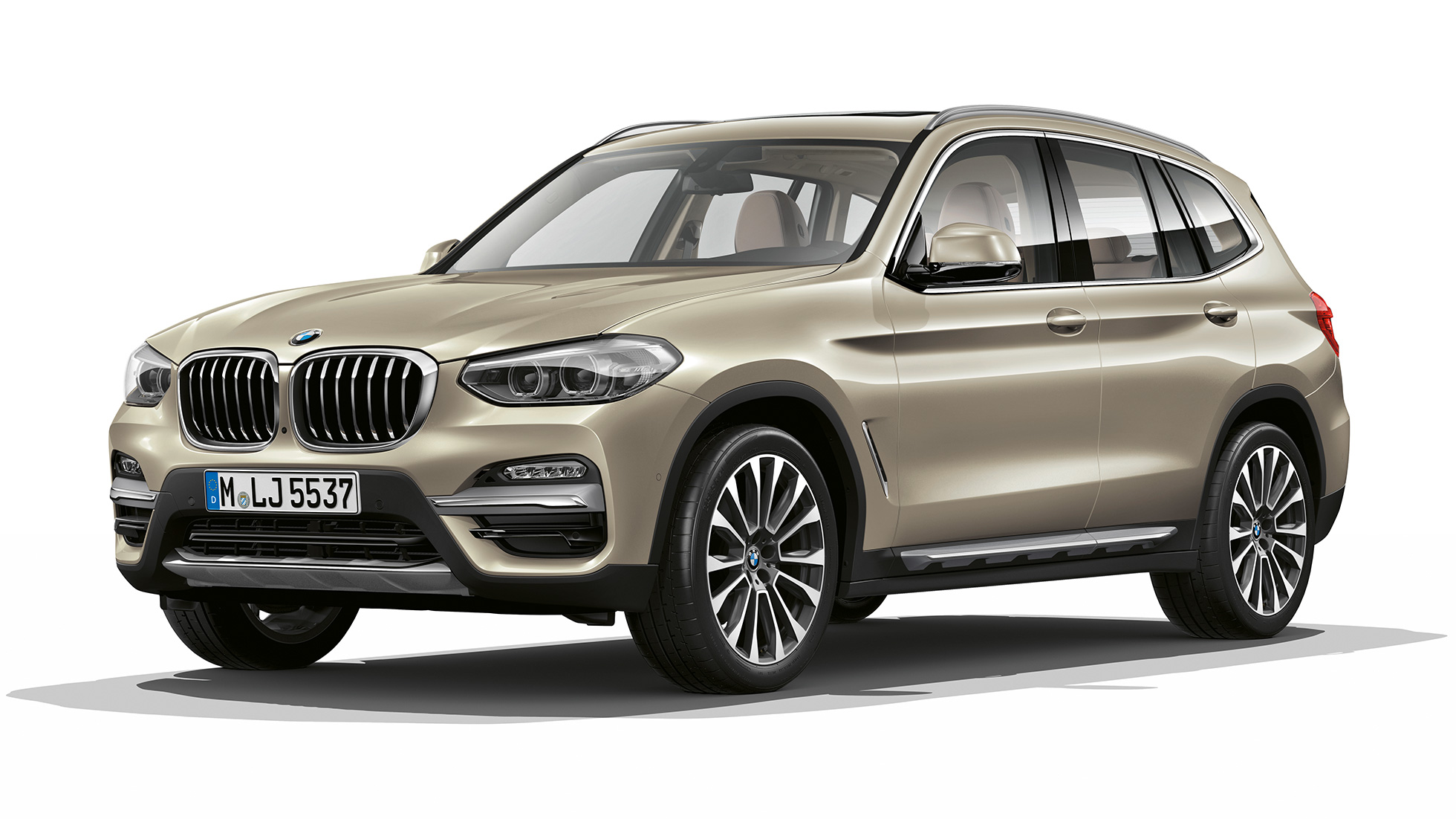

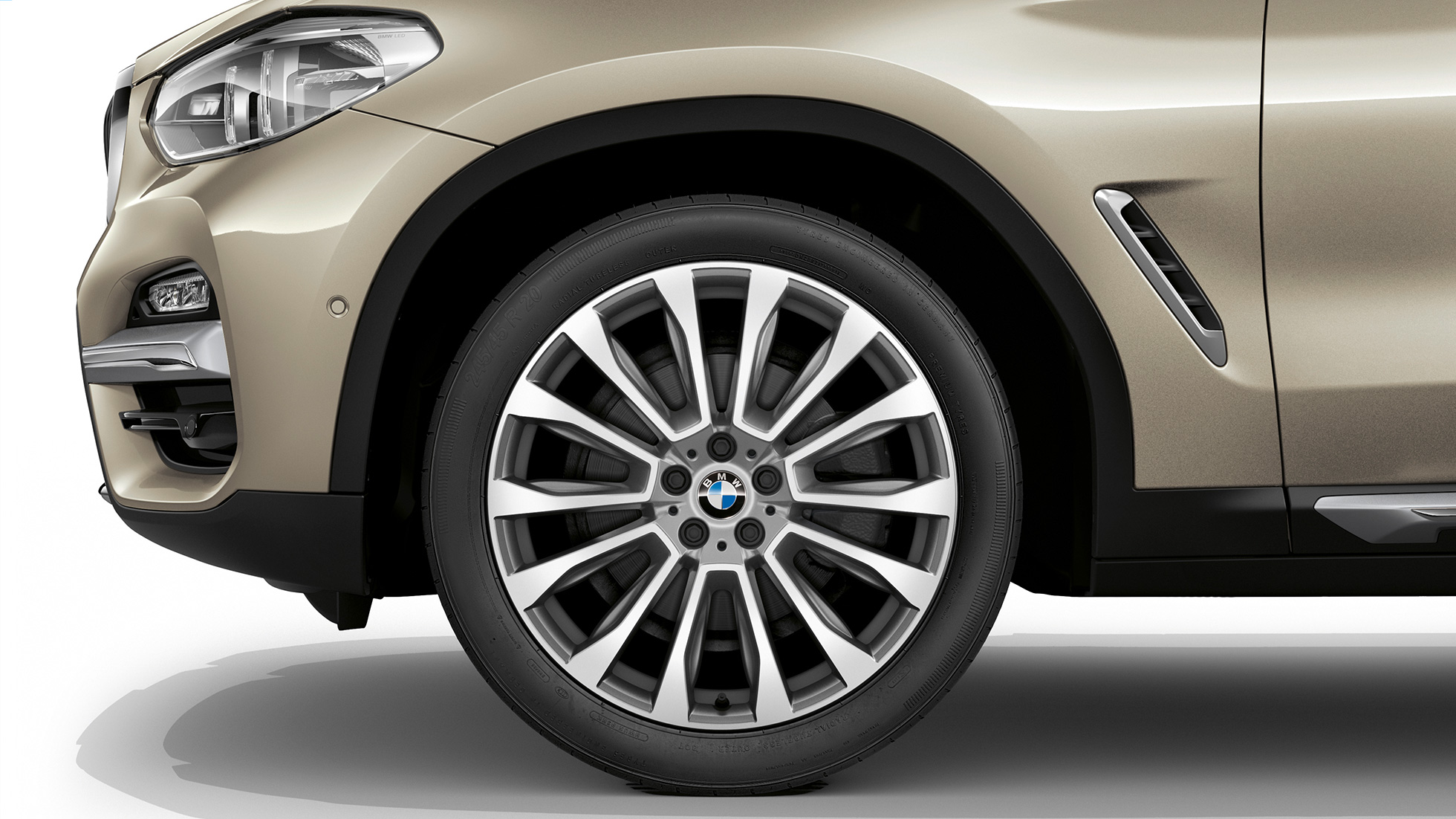

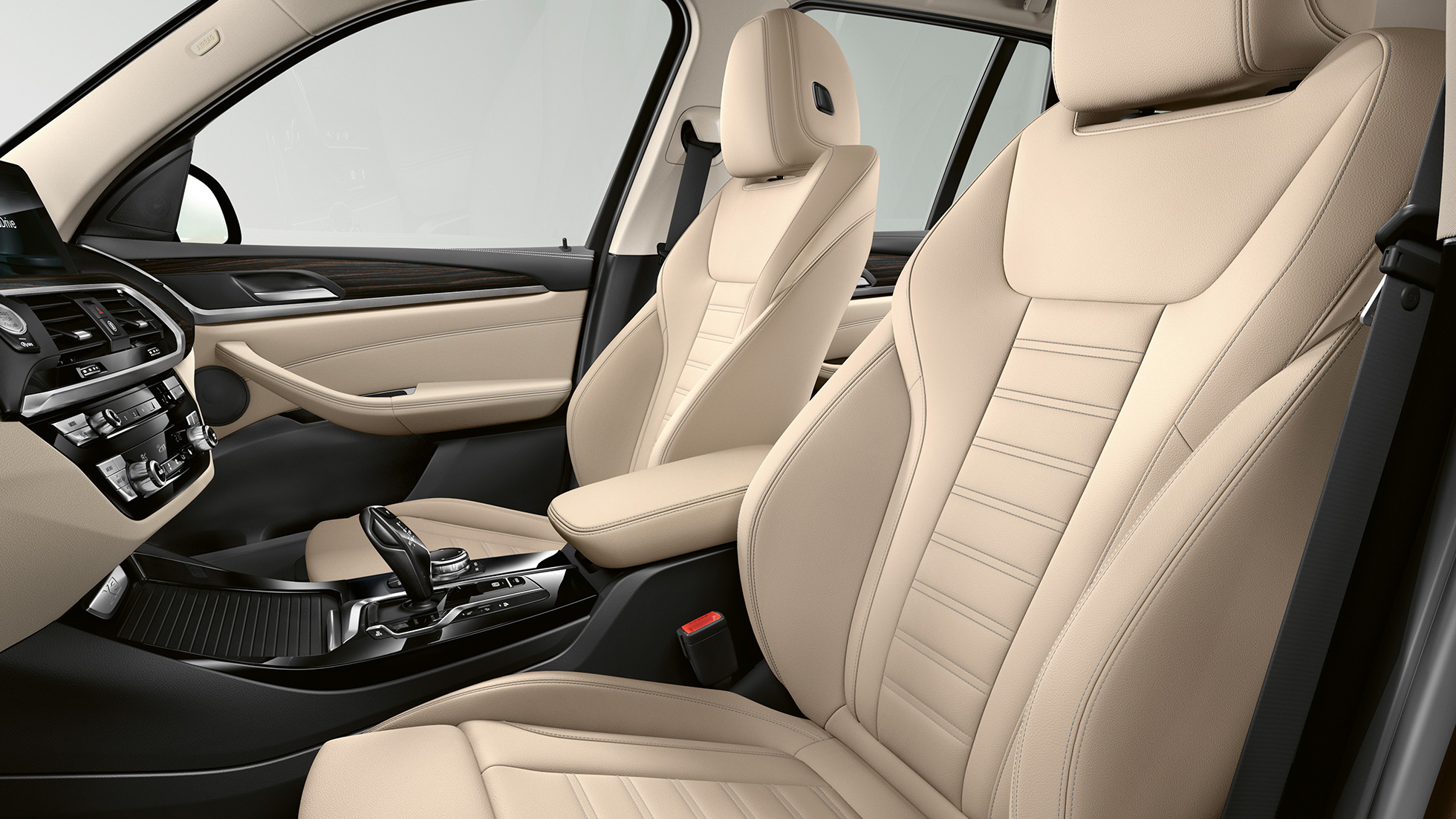

The Model Luxury Line is an ideal combination of robustness and elegance. Examples include the luxurious leather upholstery and sophisticated details such as the instrument panel in Sensatec. Eye-catchers on the exterior are the optional 20” light alloy wheels V-spoke style 697 in Bicolour Ferric Grey gloss-lathed as well as the side skirt panelling and underbody protection at the front and rear in Frozen Grey matt with chrome accent.
The Model Luxury Line is an ideal combination of robustness and elegance. Examples include the luxurious leather upholstery and sophisticated details such as the instrument panel in Sensatec. Eye-catchers on the exterior are the optional 20” light alloy wheels V-spoke style 697 in Bicolour Ferric Grey gloss-lathed as well as the side skirt panelling and underbody protection at the front and rear in Frozen Grey matt with chrome accent.

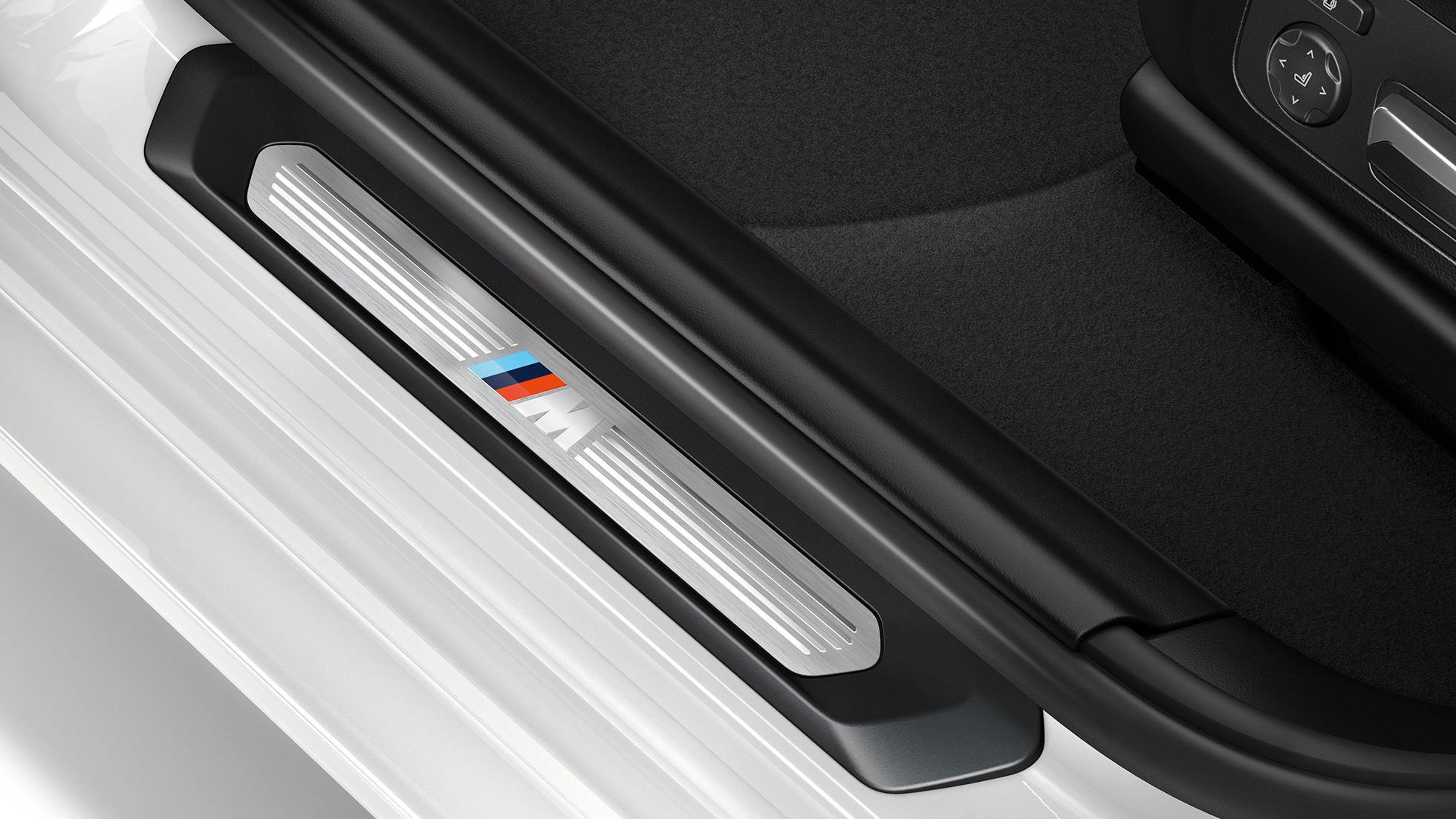

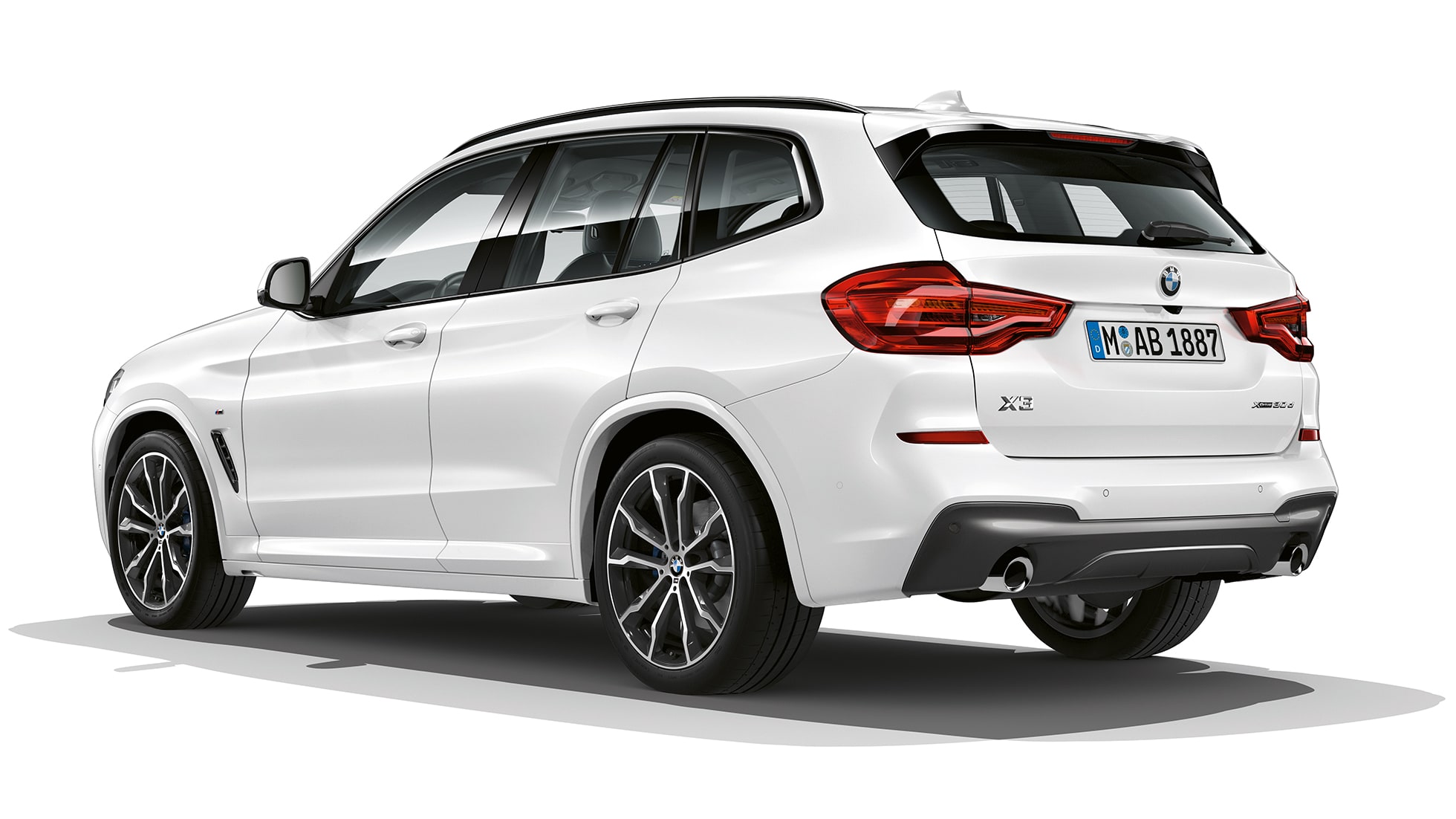

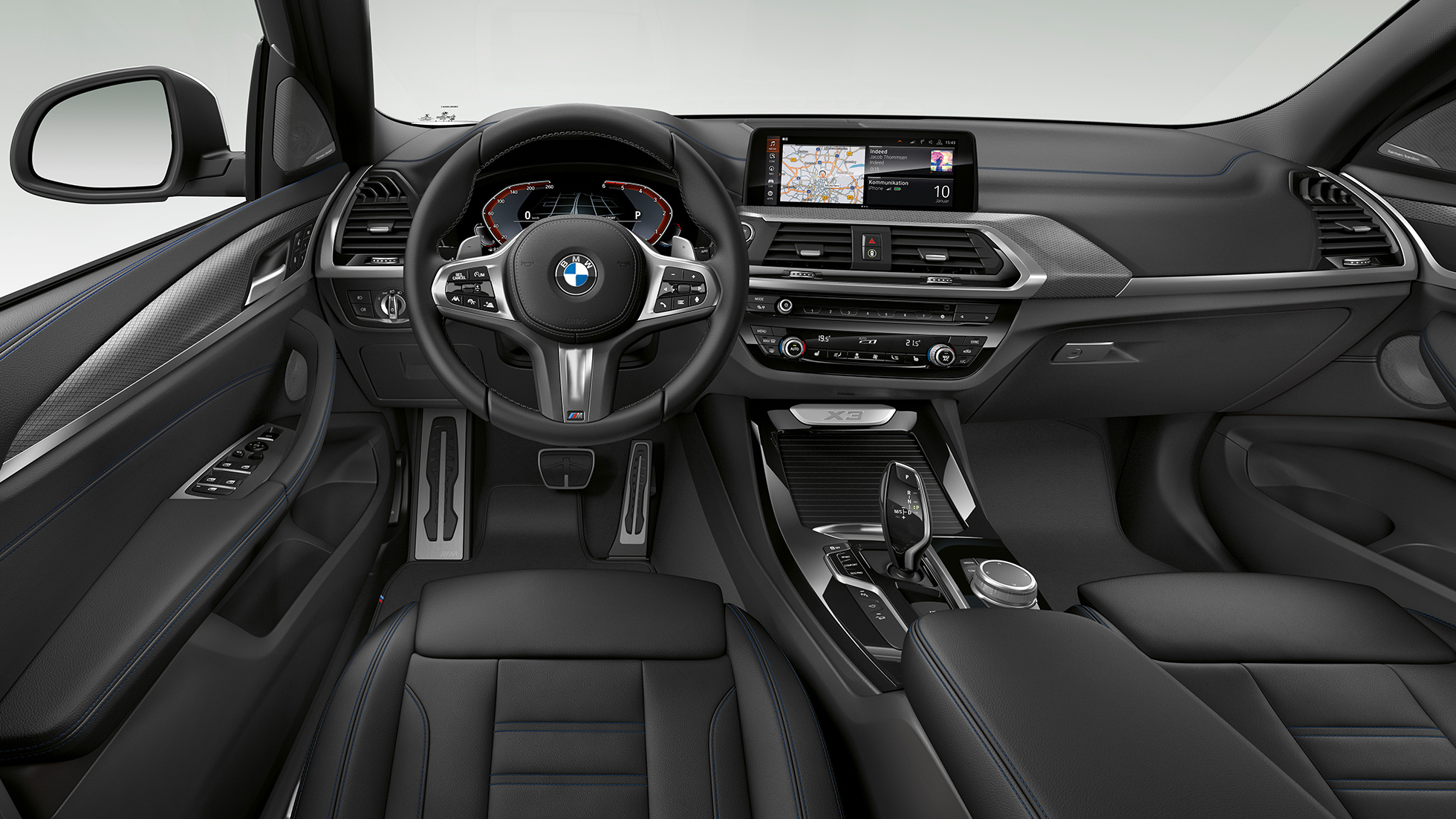

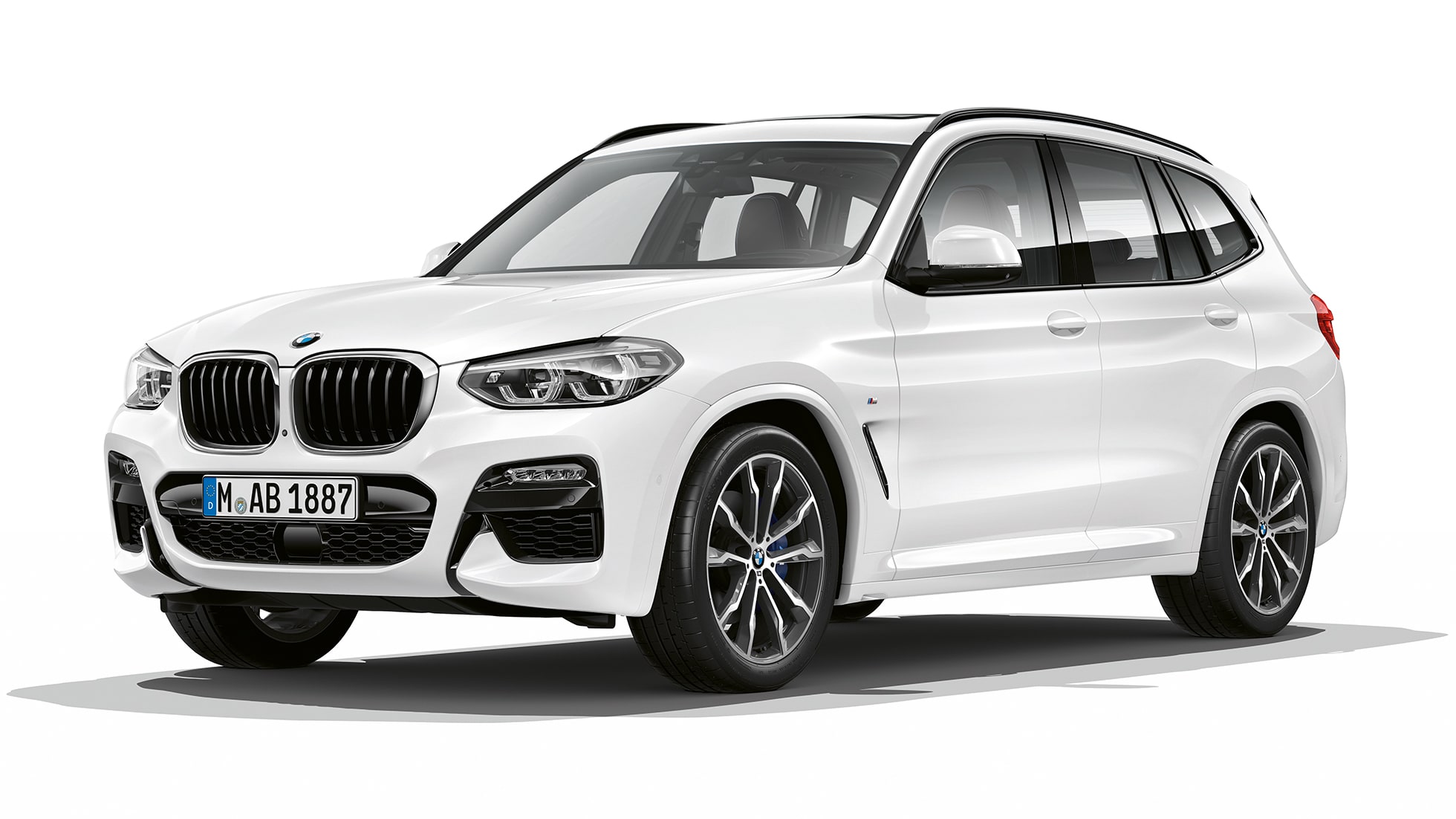

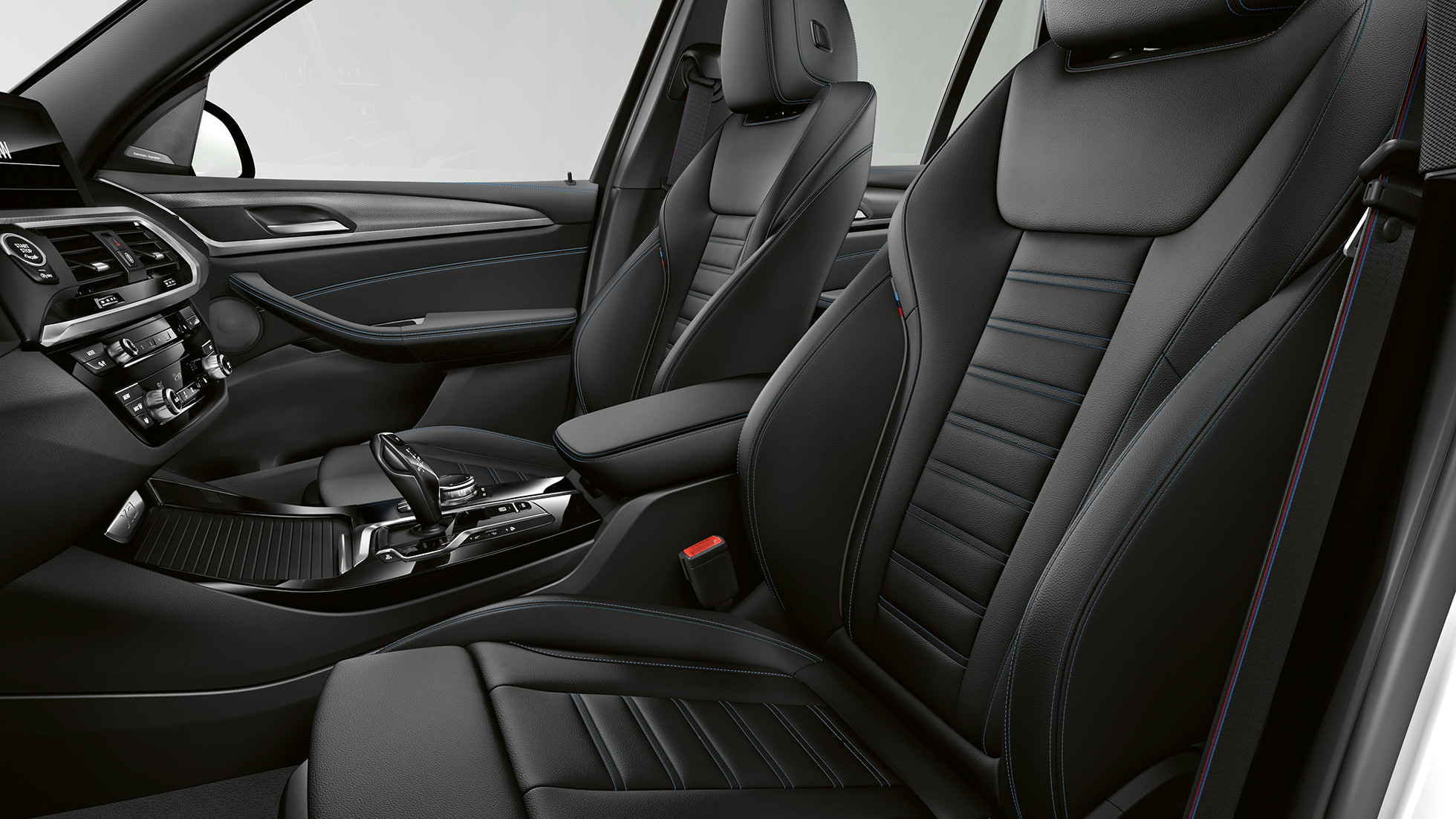

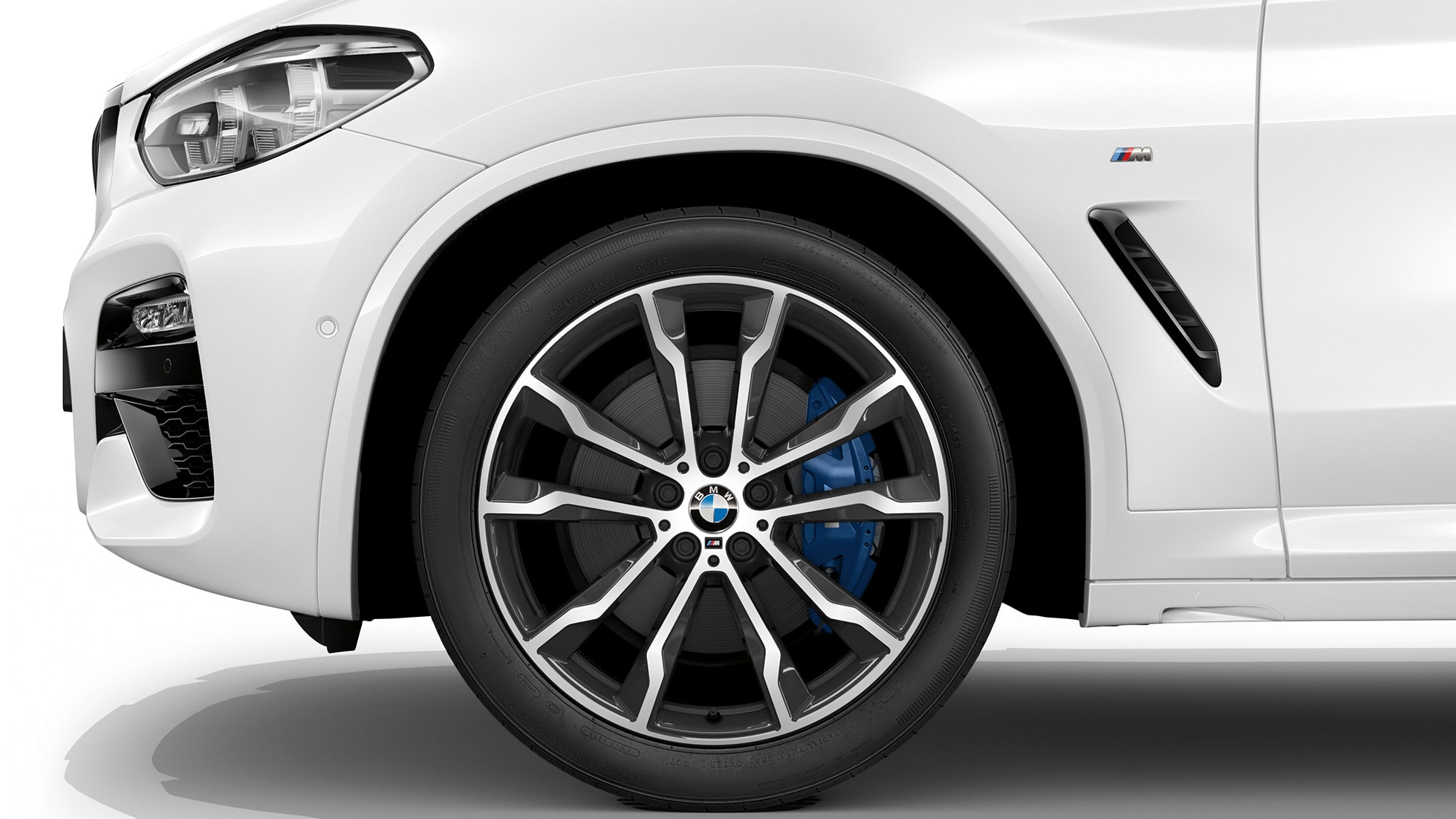

Stylish motorsport sensation included: the optional Model M Sport includes the M aerodynamics package with prominent front apron and large air inlets. Rounding off the sporty exterior are the athletic 19’’ M light alloy wheels Double-spoke style 698 M Bicolour Ferric Grey gloss and the dynamic rear apron in Dark Shadow metallic.
Stylish motorsport sensation included: the optional Model M Sport includes the M aerodynamics package with prominent front apron and large air inlets. Rounding off the sporty exterior are the athletic 19’’ M light alloy wheels Double-spoke style 698 M Bicolour Ferric Grey gloss and the dynamic rear apron in Dark Shadow metallic.

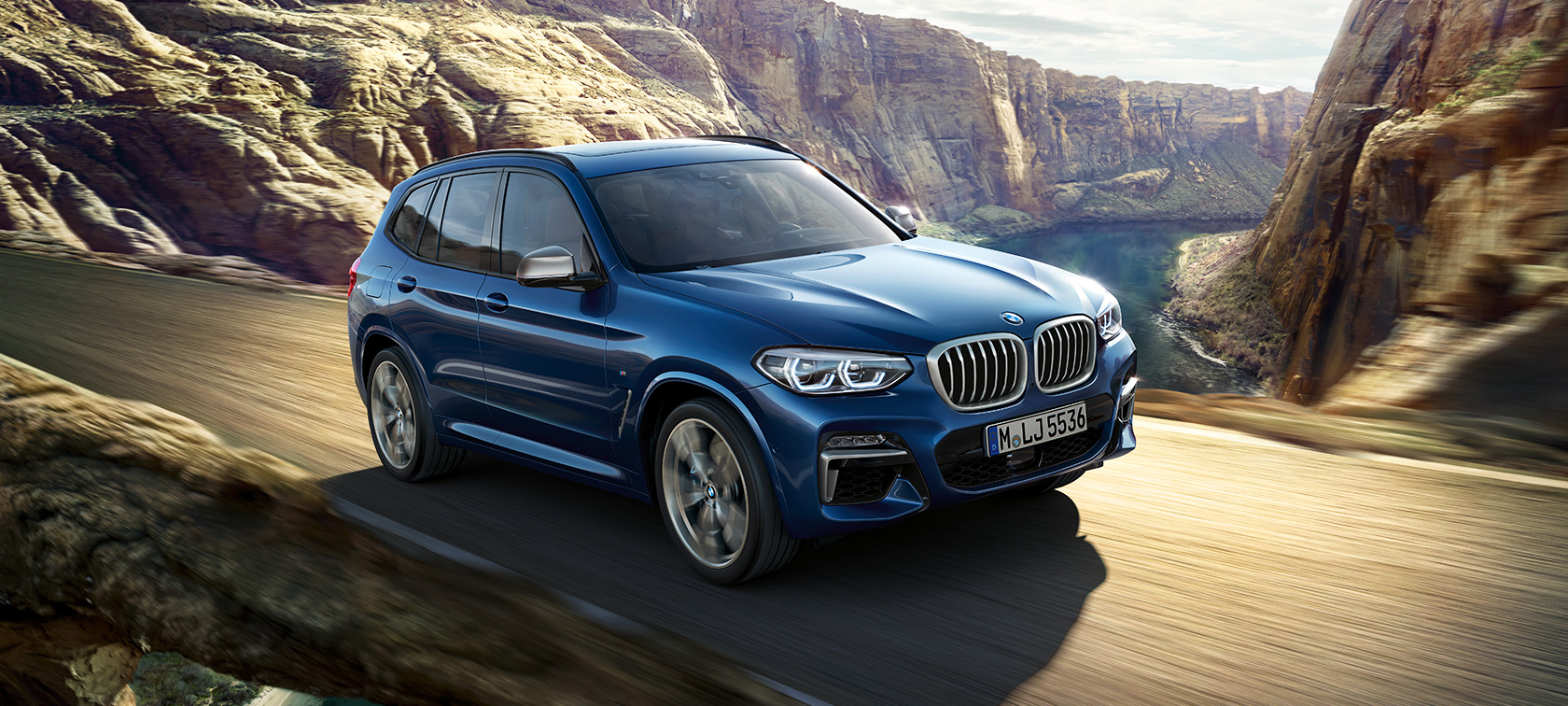

IMPRESSIVE POWER.
Driving dynamics of the BMW X3.
The BMW X3 presents its athletic and dynamic look. Thanks to its intelligent lightweight construction concept and precisely coordinated aerodynamics measures, it provides an impressively agile and high-torque response in every driving situation. The air vent control of the Active air stream kidney grille is unique – if demand for cooling air is low, one air vent remains closed automatically, thus providing a further enhancement in aerodynamics.
BMW TwinPower Turbo inline 6-cylinder diesel engine.
The new-generation BMW TwinPower Turbo inline 6-cylinder diesel engine offers impressive power delivery combined with exemplary consumption figures, as a result of highly innovative technologies such as a turbocharger with variable turbine geometry common rail direct injection. The engine delivers 195 kW (265hp) and an impressive maximum torque of 620 Nm.
BMW xDrive.
The intelligent BMW xDrive all-wheel drive system smoothly and variably distributes drive power to the front and rear wheels for maximum traction, driving dynamics and safety in every driving situation. For even better agility, the electronically controlled power distribution for instance counterbalances oversteer or understeer on bends.
Driving Experience Control.
The Driving Experience Control offers the driver the choice between the standard COMFORT mode, ECO PRO Mode, geared towards efficiency, and SPORT mode, which enables even more dynamic driving. The new interactive Adaptive Mode function continuously adjusts the adaptive suspension, the steering and the Steptronic transmission to suit the current driving situation.
Steptronic Sport transmission.
The 8-speed Steptronic Sport transmission offers incredibly sporty gear changes. Whether automatic or manual using gearshift paddles or gear lever - for comfortable coasting or incredibly dynamic driving. In SPORT mode and with the gear lever in the lefthand S/M position, the gear shifts are configured for maximum performance.
Aerodynamics.
With targeted measures focusing on Aerodynamics, BMW has optimised drag coefficient and efficiency as well as interior acoustics. Fuel consumption has also been reduced. The Active air stream kidney grille, the Air Breather, the Air curtain on the front wheels and the Aero wheels are all targeted and detailed measures to further reduce air resistance.
Active air stream kidney grille.
The Active air stream kidney grille represents the cutting edge of aerodynamic performance. When a cooling airflow is not needed, it electronically closes the radiator grille with its air vents and thereby reduces the amount of air flowing into the engine bay. This optimises both the aerodynamics and consumption rates.
DIRECTIONAL STABILITY AT THE PUSH OF A BUTTON.
Driver assistance systems of the BMW X3.
Highly modern driver assistance systems further elevate the driving experience in the BMW X3. The revised operating concept inspires with intuitive user guidance and practical digital functions – with maximum focus on your needs and on the path towards autonomous driving.
Driving Assistant Plus.
Driving Assistant Plus offers greater comfort and security during monotonous or complex driving situations. These can include traffic jams, stop-and-go traffic or long journeys through the city, on country roads or motorways, along with navigating junctions and lane changes.
Navigation system Professional.
The Navigation system Professional incl. 10.25" LCD colour display and Radio BMW Professional with DVD drive comes with more than 20 GB of memory e.g. for audio files. It is operated intuitively via the iDrive Touch Controller and seven functional bookmarks or alternatively via the Touch Display.
BMW Head-Up Display.
The full-colour BMW Head-Up Display projects all information relevant to the journey directly into the driver's field of vision, thereby allowing them to fully concentrate on driving. Information such as the current speed, navigation directions, Speed Limit Info including no-overtaking indicator, along with telephone and entertainment lists are displayed.
Multifunctional instrument display.
The Multifunctional instrument display with Black Panel technology and a screen diagonal of 12'' provides a highly impressive visualisation of the driving experience. Three different modes and their specific displays – each of them have their own colour scheme and graphic style – can be displayed in the instrument cluster: ECO PRO, COMFORT and SPORT.
SEAMLESSLY CONNECTED.
Digital Services in the BMW X3.
Be connected with friends and the world while you are travelling, use exclusive services and smart apps, call up and send e-mail or surf the Internet via WiFi – the BMW X3 establishes a class of its own in terms of connectivity and comfort.
BMW Connected.
Connect with your BMW. The BMW Connected app is your digital mobility assistant, taking care of your needs before and during each journey. Access your car using your smartphone, smartwatch or Amazon Echo, send destinations to the navigation system or receive reminders for meetings to make sure you arrive there on time.
Wi-Fi Hotspot.
Take part in video conference calls on your tablet or stream the final episode of your favourite series on your smartphone. The Wi-Fi Hotspot is a way to go online with LTE speed (if available) using the SIM card installed in your vehicle. You and your fellow passengers can surf the Web on up to ten devices.
On-Street Parking information.
Where is the nearest available parking space? Instead of searching for a long time, use On-Street Parking Information to get help finding an on-street parking space faster. Potential spaces are shown in shades of blue on the navigation map. Recently vacated spaces are marked with a P.
BMW Connected+
Your BMW and smartphone merge to form a single unit with BMW Connected+. Use the personalised features of the BMW Connected app both inside and outside your car. Share journey information with friends, get directions right up to the door of your destination or control your smart home.
FUTURISTICALLY AGILE.

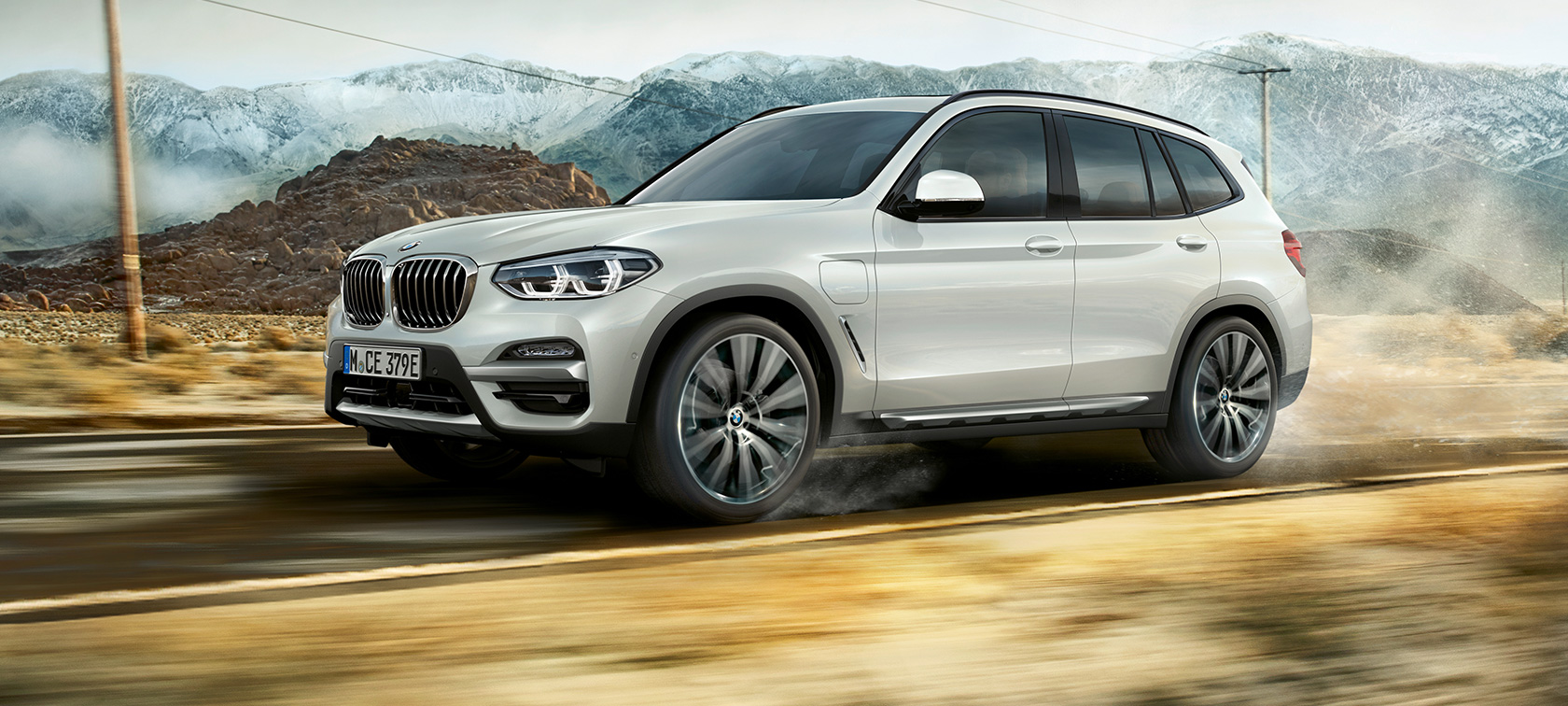

The BMW X3 xDrive30e.
The BMW X3 xDrive30e combines the best of two worlds: the dynamics and efficiency of an electric motor with the range and comfort of a combustion engine. A plug-in hybrid as SUV with intelligent technologies and dynamic acceleration that offers an agile driving experience.
Driving Experience Control.
With the Driving Experience Control, you can choose between the four driving modes ECO PRO, COMFORT, SPORT and SPORT+ at any time. The programmes have different effects on the drive management and the setup of the suspension characteristics. The ECO PRO mode is designed for maximum driving efficiency and comfortable suspension characteristics, while the SPORT+ mode with its additional power of up to 30 kW focuses on sporty driving dynamics.
Hybrid-specific instrument cluster.
With the hybrid-specific instrument cluster, you always have all the relevant information about the innovative plug-in hybrid drive at your fingertips. For example, you can read the output display of the electric motor as well as the charge level indicator and the purely electric and combined range.
Charging flap incl. charging status.
The port for external charging of the high-voltage battery is located behind a flap on the vehicle's front side panel on the left. This protects the socket from environmental influences. An LED display indicates the current charging status.
Plug-in hybrid drive.
The innovative plug-in hybrid drive combines an efficient combustion engine with a powerful electric motor. The particularly high system output thus achieved offers you the range comfort of the combustion drive and at the same time the possibility of driving without local emissions.
Acoustic protection for pedestrians.
With the acoustic protection for pedestrians, the vehicle generates an elegant sound signature up to a speed of 30 km/h in order to make other road users aware of the vehicle's presence as it approaches them. The system is automatically active when the vehicle is started.
eDrive Remote Services.
Is the charging status sufficient for a trip to the city or can I find a charging station nearby? With eDrive Remote Services, you can check this conveniently via the BMW Connected App on your smartphone. You can also adjust the temperature, lock your vehicle or flash the lights remotely if necessary.
TECHNICAL DATA.
_2019/images/bmw_x3_sdrive20i/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770567559.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,735
|
|
Max. permissible weight in kg
|
2,330
|
|
Permitted load in kg
|
660
|
|
Permitted axle load front/rear in kg
|
1,070/1,370
|
|
Luggage capacity min. (seats up or roof down) in l
|
550
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600
|
|
Trailer load (unbraked) in kg
|
750
|
|
Trailer load 8% (braked) in kg
|
2,000
|
|
Trailer load 12% (braked) in kg
|
2,000
|
| Engine | |
|---|---|
|
Cylinders/valves
|
4/4
|
|
Capacity in ccm
|
1,597
|
|
Stroke/bore in mm
|
75.6/82.0
|
|
Engine power in kW (PS) at 1/min
|
125 (170)/5,000-6,000
|
|
Engine torque (Nm) at 1/min
|
250/1,500-4,700
|
|
Compression ratio : 1
|
9.0
|
| Performance | |
|---|---|
|
Top speed in km/h
|
208
|
|
Acceleration 0–100 km/h in s
|
9.1
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
8.4-7.9
|
|
Extra-urban in l/100 km
|
6.9-6.7
|
|
Combined in l/100 km
|
7.4-7.1
|
|
CO2 combined emissions in g/km
|
169-163
|
|
Tank capacity, approx. in l
|
65
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
225/60 R18 104W XL
|
|
Tyre dimensions rear
|
225/60 R18 104W XL
|
|
Wheel dimensions and material front
|
7 J x 18 inches, light-alloy
|
|
Wheel dimensions and material rear
|
7 J x 18 inches, light-alloy
|
_2019/images/bmw_x3_xdrive20i/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770568737.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,790
|
|
Max. permissible weight in kg
|
2,400
|
|
Permitted load in kg
|
660
|
|
Permitted axle load front/rear in kg
|
1,140/1,370
|
|
Luggage capacity min. (seats up or roof down) in l
|
550
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600
|
|
Trailer load (unbraked) in kg
|
750
|
|
Trailer load 8% (braked) in kg
|
2,000
|
|
Trailer load 12% (braked) in kg
|
2,000
|
| Engine | |
|---|---|
|
Cylinders/valves
|
4/4
|
|
Capacity in ccm
|
1,998
|
|
Stroke/bore in mm
|
94.6/82.0
|
|
Engine power in kW (PS) at 1/min
|
135 (184)/5,000-6,500
|
|
Engine torque (Nm) at 1/min
|
290/1,350-4,250
|
|
Compression ratio : 1
|
11.0
|
| Performance | |
|---|---|
|
Top speed in km/h
|
215
|
|
Acceleration 0–100 km/h in s
|
8.3
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
8.8-8.5
|
|
Extra-urban in l/100 km
|
6.5-6.3
|
|
Combined in l/100 km
|
7.1-7.3
|
|
CO2 combined emissions in g/km
|
168-163
|
|
Tank capacity, approx. in l
|
65
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
225/60 R18 104W XL
|
|
Tyre dimensions rear
|
225/60 R18 104W XL
|
|
Wheel dimensions and material front
|
7 J x 18 inches, light-alloy
|
|
Wheel dimensions and material rear
|
7 J x 18 inches, light-alloy
|
_2019/images/bmw_x3_xdrive30i/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770574350.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,790
|
|
Max. permissible weight in kg
|
2,400
|
|
Permitted load in kg
|
660
|
|
Permitted axle load front/rear in kg
|
1,140/1,370
|
|
Luggage capacity min. (seats up or roof down) in l
|
550
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600
|
|
Trailer load (unbraked) in kg
|
750
|
|
Trailer load 8% (braked) in kg
|
2,000
|
|
Trailer load 12% (braked) in kg
|
2,000
|
| Engine | |
|---|---|
|
Cylinders/valves
|
4/4
|
|
Capacity in ccm
|
1,998
|
|
Stroke/bore in mm
|
94.6/82.0
|
|
Engine power in kW (PS) at 1/min
|
185 (252)/5,200-6,500
|
|
Engine torque (Nm) at 1/min
|
350/1,450-4,800
|
|
Compression ratio : 1
|
10.2
|
| Performance | |
|---|---|
|
Top speed in km/h
|
240
|
|
Acceleration 0–100 km/h in s
|
6.3
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
8.5-8.4
|
|
Extra-urban in l/100 km
|
6.7-6.4
|
|
Combined in l/100 km
|
7.3-7.2
|
|
CO2 combined emissions in g/km
|
168-164
|
|
Tank capacity, approx. in l
|
65
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
225/60 R18 104W XL
|
|
Tyre dimensions rear
|
225/60 R18 104W XL
|
|
Wheel dimensions and material front
|
7 J x 18 inches, light-alloy
|
|
Wheel dimensions and material rear
|
7 J x 18 inches, light-alloy
|
_2019/images/bmw_x3_m40i/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770577693.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,885
|
|
Max. permissible weight in kg
|
2,455
|
|
Permitted load in kg
|
640
|
|
Permitted axle load front/rear in kg
|
1,190/1,375
|
|
Luggage capacity min. (seats up or roof down) in l
|
550
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600
|
|
Trailer load (unbraked) in kg
|
750
|
|
Trailer load 8% (braked) in kg
|
2,000
|
|
Trailer load 12% (braked) in kg
|
2,000
|
| Engine | |
|---|---|
|
Cylinders/valves
|
6/4
|
|
Capacity in ccm
|
2,998
|
|
Stroke/bore in mm
|
94.6/82.0
|
|
Engine power in kW (PS) at 1/min
|
260 (354)/5,500-6,500
|
|
Engine torque (Nm) at 1/min
|
500/1,550-4,500
|
|
Compression ratio : 1
|
11.0
|
| Performance | |
|---|---|
|
Top speed in km/h
|
250
|
|
Acceleration 0–100 km/h in s
|
4.8
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
11.3-11.5
|
|
Extra-urban in l/100 km
|
7.8-7.9
|
|
Combined in l/100 km
|
9.1-9.1
|
|
CO2 combined emissions in g/km
|
207-206
|
|
Tank capacity, approx. in l
|
65
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
245/45 R20 103W XL
|
|
Tyre dimensions rear
|
275/40 R20 106W XL
|
|
Wheel dimensions and material front
|
8 J x 20 inches, light-alloy
|
|
Wheel dimensions and material rear
|
9.5 J x 20 inches, light-alloy
|
_2019/images/bmw_x3_sdrive18d/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770586262.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,725 [1,735]
|
|
Max. permissible weight in kg
|
2,355 [2,355]
|
|
Permitted load in kg
|
660 [660]
|
|
Permitted axle load front/rear in kg
|
1,070/1,370 [1,070/1,390]
|
|
Luggage capacity min. (seats up or roof down) in l
|
550 [550]
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600 [1,600]
|
|
Trailer load (unbraked) in kg
|
750 [750]
|
|
Trailer load 8% (braked) in kg
|
2,000 [2,000]
|
|
Trailer load 12% (braked) in kg
|
2,000 [2,000]
|
| Engine | |
|---|---|
|
Cylinders/valves
|
4/4
|
|
Capacity in ccm
|
1,995
|
|
Stroke/bore in mm
|
90.0/84.0
|
|
Engine power in kW (PS) at 1/min
|
110 (150)/4,000
|
|
Engine torque (Nm) at 1/min
|
350/1,500-2,500
|
|
Compression ratio : 1
|
16.5
|
| Performance | |
|---|---|
|
Top speed in km/h
|
200 [198]
|
|
Acceleration 0–100 km/h in s
|
9.5 [9.7]
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
5.7-5.3
|
|
Extra-urban in l/100 km
|
5.1-4.8
|
|
Combined in l/100 km
|
5.3-5.0
|
|
CO2 combined emissions in g/km
|
131-139
|
|
Tank capacity, approx. in l
|
58
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
225/60 R18 104W XL
|
|
Tyre dimensions rear
|
225/60 R18 104W XL
|
|
Wheel dimensions and material front
|
7 J x 18 inches, light-alloy
|
|
Wheel dimensions and material rear
|
7 J x 18 inches, light-alloy
|
_2019/images/bmw_x3_xdrive20d/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770587813.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,825
|
|
Max. permissible weight in kg
|
2,420
|
|
Permitted load in kg
|
660
|
|
Permitted axle load front/rear in kg
|
1,135/1,395
|
|
Luggage capacity min. (seats up or roof down) in l
|
550
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600
|
|
Trailer load (unbraked) in kg
|
750
|
|
Trailer load 8% (braked) in kg
|
2,000
|
|
Trailer load 12% (braked) in kg
|
2,000
|
| Engine | |
|---|---|
|
Cylinders/valves
|
4/4
|
|
Capacity in ccm
|
1,995
|
|
Stroke/bore in mm
|
90.0/84.0
|
|
Engine power in kW (PS) at 1/min
|
140 (190)/4,000
|
|
Engine torque (Nm) at 1/min
|
400/1,750-2,500
|
|
Compression ratio : 1
|
16.5
|
| Performance | |
|---|---|
|
Top speed in km/h
|
213
|
|
Acceleration 0–100 km/h in s
|
8.0
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
5.9-5.6
|
|
Extra-urban in l/100 km
|
5.3-5.1
|
|
Combined in l/100 km
|
5.5-5.3
|
|
CO2 combined emissions in g/km
|
145-139
|
|
Tank capacity, approx. in l
|
60
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
225/60 R18 104W XL
|
|
Tyre dimensions rear
|
225/60 R18 104W XL
|
|
Wheel dimensions and material front
|
7 J x 18 inches, light-alloy
|
|
Wheel dimensions and material rear
|
7 J x 18 inches, light-alloy
|
_2019/images/bmw_x3_xdrive25d/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770594888.jpg)
| Weight | |
|---|---|
|
Unladen weight EU in kg
|
1,840
|
|
Max. permissible weight in kg
|
2,435
|
|
Permitted load in kg
|
660
|
|
Permitted axle load front/rear in kg
|
1,145/1,400
|
|
Luggage capacity min. (seats up or roof down) in l
|
550
|
|
Luggage capacity max. (seats down or roof up) in l
|
1,600
|
|
Trailer load (unbraked) in kg
|
750
|
|
Trailer load 8% (braked) in kg
|
2,000
|
|
Trailer load 12% (braked) in kg
|
2,000
|
| Engine | |
|---|---|
|
Cylinders/valves
|
4/4
|
|
Capacity in ccm
|
1,995
|
|
Stroke/bore in mm
|
90.0/84.0
|
|
Engine power in kW (PS) at 1/min
|
170 (231)/4,400
|
|
Engine torque (Nm) at 1/min
|
500/2,000
|
|
Compression ratio : 1
|
16.5
|
| Performance | |
|---|---|
|
Top speed in km/h
|
230
|
|
Acceleration 0–100 km/h in s
|
6.8
|
| Fuel consumption | |
|---|---|
|
Urban in l/100 km
|
6.3-6.2
|
|
Extra-urban in l/100 km
|
5.3-5.1
|
|
Combined in l/100 km
|
5.7-5.5
|
|
CO2 combined emissions in g/km
|
150-145
|
|
Tank capacity, approx. in l
|
60
|
| Wheels | |
|---|---|
|
Tyre dimensions front
|
225/60 R18 104W XL
|
|
Tyre dimensions rear
|
225/60 R18 104W XL
|
|
Wheel dimensions and material front
|
7 J x 18 inches, light-alloy
|
|
Wheel dimensions and material rear
|
7 J x 18 inches, light-alloy
|
_2019/images/bmw_x3_xdrive30d/bmw-x3-inform-technical-data.jpg/_jcr_content/renditions/cq5dam.resized.img.585.low.time1553770596326.jpg)
