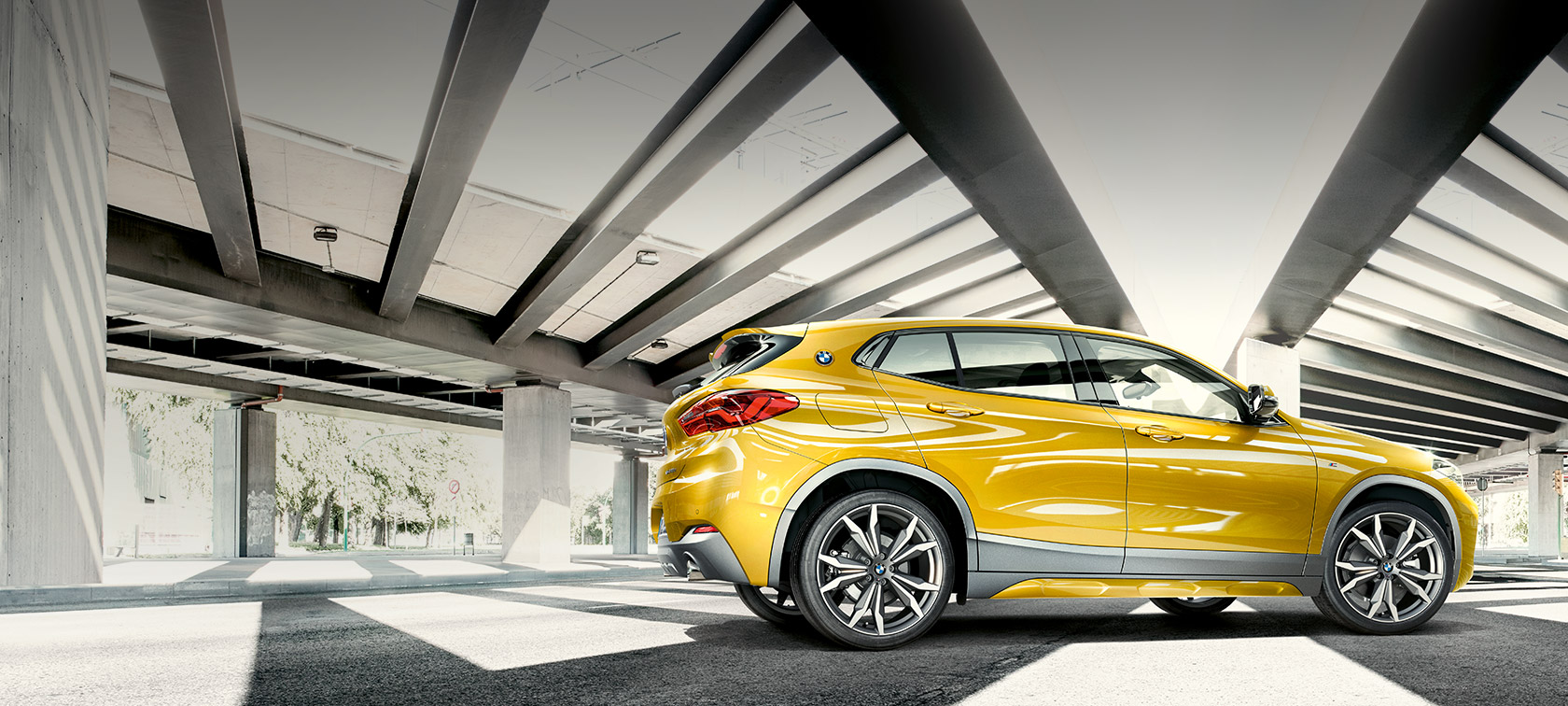

BMW X2 2018 F39 Galvanic Gold metallic side view

THE X2

THE BMW X2: ENGINES & TECHNICAL DATA

THE X2THE BMW X2: ENGINES & TECHNICAL DATA

The most important facts and figures about the BMW X2 at a glance: Find out here about engines, performance, fuel consumption, CO2 emissions, dimensions and much more.

Read more

TECHNICAL DATA OF THE BMW X2.

Weight
Unladen weight EU in kg
1,475 [1,495]
Max. permissible weight in kg
1,985 [2,005]
Permitted load in kg
585 [585]
Permitted axle load front/rear in kg
1,000/1,020 [1,020/1,020]
Luggage capacity min. (seats up or roof down) in l
470 [470]
Luggage capacity max. (seats down or roof up) in l
1,355 [1,355]
Trailer load (unbraked) in kg
735 [745]
Trailer load 8% (braked) in kg
1,700 [1,700]
Trailer load 12% (braked) in kg
1,700 [1,700]
Engine
Cylinders/valves
3/4
Capacity in ccm
1,499
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
100 (136)/4,500-6,500
Engine torque (Nm) at 1/min
220/1,480-4,100
Compression ratio : 1
11.0
Performance
Top speed in km/h
205 [205]
Acceleration 0–100 km/h in s
9.6 [9.6]
Fuel consumption
Urban in l/100 km
7.3-6.9 [6.9-6.7]
Extra-urban in l/100 km
5.0-4.6 [4.9-4.5]
Combined in l/100 km
5.8-5.5 [5.6-5.3]
CO2 combined emissions in g/km
133-125 [128-122]
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,535
Max. permissible weight in kg
2,055
Permitted load in kg
595
Permitted axle load front/rear in kg
1,055/1,030
Luggage capacity min. (seats up or roof down) in l
470
Luggage capacity max. (seats down or roof up) in l
1,355
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,800
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
141 (192)/5,000-6,000
Engine torque (Nm) at 1/min
280/1,350-4,600
Compression ratio : 1
11.0
Performance
Top speed in km/h
227
Acceleration 0–100 km/h in s
7.7
Fuel consumption
Urban in l/100 km
7.1-6.8
Extra-urban in l/100 km
5.3-5.0
Combined in l/100 km
6.0-5.6
CO2 combined emissions in g/km
136-128
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,625
Max. permissible weight in kg
2,145
Permitted load in kg
595
Permitted axle load front/rear in kg
1,085/1,090
Luggage capacity min. (seats up or roof down) in l
470
Luggage capacity max. (seats down or roof up) in l
1,355
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
141 (192)/5,000-6,000
Engine torque (Nm) at 1/min
280/1,350-4,600
Compression ratio : 1
11.0
Performance
Top speed in km/h
224
Acceleration 0–100 km/h in s
7.4
Fuel consumption
Urban in l/100 km
7.6-7.2
Extra-urban in l/100 km
6.0-5.7
Combined in l/100 km
6.6-6.2
CO2 combined emissions in g/km
151-142
Tank capacity, approx. in l
61
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,685
Max. permissible weight in kg
2,190
Permitted load in kg
580
Permitted axle load front/rear in kg
1,120/1,095
Luggage capacity min. (seats up or roof down) in l
470
Luggage capacity max. (seats down or roof up) in l
1,355
Trailer load (unbraked) in kg
-
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
-
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
225 (306)/5,000-6,250
Engine torque (Nm) at 1/min
450/1,750-4,500
Compression ratio : 1
9.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.9
Fuel consumption
Urban in l/100 km
8.5-8.3
Extra-urban in l/100 km
6.3-5.9
Combined in l/100 km
7.1-6.8
CO2 combined emissions in g/km
163-154
Tank capacity, approx. in l
61
Wheels
Tyre dimensions front
225/45 R19 92W
Tyre dimensions rear
225/45 R19 92W
Wheel dimensions and material front
8 J x 19 inches, light-alloy
Wheel dimensions and material rear
8 J x 19 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,550 [1,570]
Max. permissible weight in kg
2,015 [2,030]
Permitted load in kg
540 [535]
Permitted axle load front/rear in kg
1,035/1,055 [1,055/1,055]
Luggage capacity min. (seats up or roof down) in l
470 [470]
Luggage capacity max. (seats down or roof up) in l
1,355 [1,355]
Trailer load (unbraked) in kg
750 [750]
Trailer load 8% (braked) in kg
1,700 [1,700]
Trailer load 12% (braked) in kg
1,700 [1,700]
Engine
Cylinders/valves
3/4
Capacity in ccm
1.496
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
85 (116)/4,000
Engine torque (Nm) at 1/min
270/1,750-2,250
Compression ratio : 1
16.5
Performance
Top speed in km/h
192 [192]
Acceleration 0–100 km/h in s
11.5 [11.5]
Fuel consumption
Urban in l/100 km
4.9-4.7 [4.8-4.6]
Extra-urban in l/100 km
4.1-3.7 [4.1-3.9]
Combined in l/100 km
4.4-4.1 [4.4-4.1]
CO2 combined emissions in g/km
115-106 [115-109]
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,575 [1,610]
Max. permissible weight in kg
2,080 [2,115]
Permitted load in kg
580 [580]
Permitted axle load front/rear in kg
1,060/1,050 [1,100/1,050]
Luggage capacity min. (seats up or roof down) in l
470 [470]
Luggage capacity max. (seats down or roof up) in l
1,355 [1,355]
Trailer load (unbraked) in kg
750 [750]
Trailer load 8% (braked) in kg
1,800 [1,800]
Trailer load 12% (braked) in kg
1,800 [1,800]
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
110 (150)/4,000
Engine torque (Nm) at 1/min
350/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
207 [207]
Acceleration 0–100 km/h in s
9.3 [9.3]
Fuel consumption
Urban in l/100 km
5.3-5.0 [5.3-5.0]
Extra-urban in l/100 km
4.2-4.0 [4.3-4.0]
Combined in l/100 km
4.6-4.3 [4.7-4.3]
CO2 combined emissions in g/km
122-114 [124-118]
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,655 [1,675]
Max. permissible weight in kg
2,160 [2,180]
Permitted load in kg
580 [580]
Permitted axle load front/rear in kg
1,100/1,095 [1,115/1,100]
Luggage capacity min. (seats up or roof down) in l
470 [470]
Luggage capacity max. (seats down or roof up) in l
1,355 [1,355]
Trailer load (unbraked) in kg
750 [750]
Trailer load 8% (braked) in kg
1,800 [1.800]
Trailer load 12% (braked) in kg
1,800 [1.800]
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
110 (150)/4,000
Engine torque (Nm) at 1/min
350/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
206 [206]
Acceleration 0–100 km/h in s
9.2 [9.4]
Fuel consumption
Urban in l/100 km
6.1-5.6 [5.5-5.1]
Extra-urban in l/100 km
4.7-4.4 [4.6-4.3]
Combined in l/100 km
5.2-4.9 [4.9-4.6]
CO2 combined emissions in g/km
136-128 [129-121]
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1.615
Max. permissible weight in kg
2.125
Permitted load in kg
585
Permitted axle load front/rear in kg
1,100/1,060
Luggage capacity min. (seats up or roof down) in l
470
Luggage capacity max. (seats down or roof up) in l
1.355
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,800
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
140 (190)/4,000
Engine torque (Nm) at 1/min
400/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
224
Acceleration 0–100 km/h in s
7.9
Fuel consumption
Urban in l/100 km
5.4-5.0
Extra-urban in l/100 km
4.3-4.0
Combined in l/100 km
4.7-4.4
CO2 combined emissions in g/km
123-115
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
Weight
Unladen weight EU in kg
1,675
Max. permissible weight in kg
2,190
Permitted load in kg
590
Permitted axle load front/rear in kg
1,120/1,100
Luggage capacity min. (seats up or roof down) in l
470
Luggage capacity max. (seats down or roof up) in l
1,355
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
140 (190)/4,000
Engine torque (Nm) at 1/min
400/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
221
Acceleration 0–100 km/h in s
7.7
Fuel consumption
Urban in l/100 km
5.7-5.3
Extra-urban in l/100 km
4.6-4.3
Combined in l/100 km
5.0-4.6
CO2 combined emissions in g/km
131-122
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,695
Max. permissible weight in kg
2,170
Permitted load in kg
550
Permitted axle load front/rear in kg
1,140/1,080
Luggage capacity min. (seats up or roof down) in l
470
Luggage capacity max. (seats down or roof up) in l
1,355
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
170 (231)/4,400
Engine torque (Nm) at 1/min
450/1,500-3,000
Compression ratio : 1
16.5
Performance
Top speed in km/h
237
Acceleration 0–100 km/h in s
6.6
Fuel consumption
Urban in l/100 km
5.8-5.5
Extra-urban in l/100 km
4.7-4.5
Combined in l/100 km
5.1-4.8
CO2 combined emissions in g/km
135-127
Tank capacity, approx. in l
51
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,805
Max. permissible weight in kg
2,300
Permitted load in kg
570
Permitted axle load front/rear in kg
1,120/1,250
Luggage capacity min. (seats up or roof down) in l
410
Luggage capacity max. (seats down or roof up) in l
1,290
Trailer load (unbraked) in kg
-
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
-
Engine
Cylinders/valves
3/4
Capacity in ccm
1,499
Stroke/bore in mm
94.6/82
Engine power in kW (hp) at 1/min
92 (125)/5,000-5,500
Engine torque (Nm) at 1/min
220/1,500-3,800
Compression ratio : 1
11.0
Performance
Top speed in km/h
195
Acceleration 0–100 km/h in s
6.8
Fuel consumption
Urban in l/100 km
-
Extra-urban in l/100 km
-
Combined in l/100 km
36
CO2 combined emissions in g/km
-
Tank capacity, approx. in l
-
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
10.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
2.4
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
3.2
Electric engine
Electric engine power kW (hp) at 1/min
70 (95)/8,000
Electric Engine torque (Nm) at 1/min
165/100-3,900
Combined system power
Combined power kW (hp)
162 (220)
Combined torque Nm
385

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW X2 xDrive20d:
Fuel consumption in l/100 km (combined): 5.0–4.6
CO2 emissions in g/km (combined): 131–122


The values of the vehicles labeled with (2) are preliminary.



The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2



The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.

Read more

Fuel consumption and CO2 emissions.

  • BMW X2 xDrive20d:
    Fuel consumption in l/100 km (combined): 5.0–4.6
    CO2 emissions in g/km (combined): 131–122

    The values of the vehicles labeled with (2) are preliminary.

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
