THE X4 M

BMW X4 M AUTOMOBILES: ENGINES & TECHNICAL DATA.

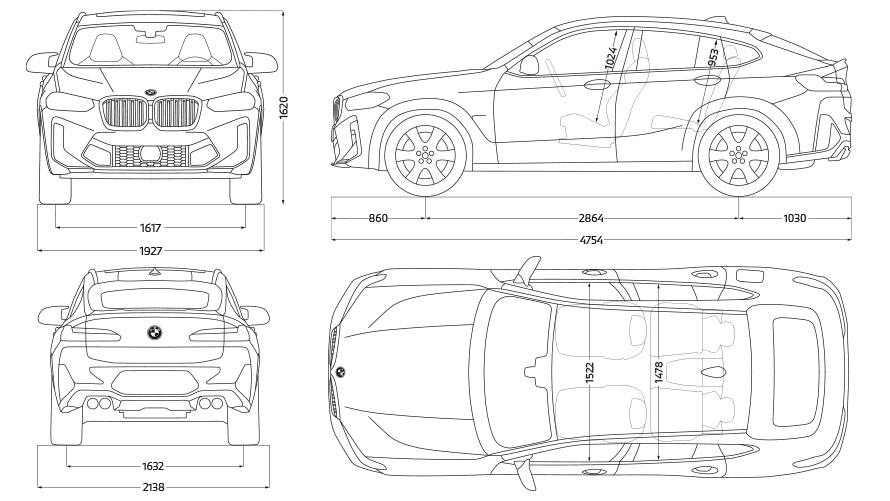

BMW X4 M Competition, BMW X4 M, BMW X4 M40i and BMW X4 M40d – engines, facts and dimensions.
ENGINES AND TECHNICAL DATA OF THE BMW X4 M AUTOMOBILES.
- BMW X4 M Competition
- BMW X4 M
- BMW X4 M40i
- BMW X4 M40d
No search result found. Please try another input

Unladen weight EU in kg | 2,085 |
---|---|
Max. permissible weight in kg | 2,500 |
Permitted load in kg | 490 |
Permitted axle load front/rear in kg | 1,185/1,425 |
Luggage capacity min. (seats up) in l | 525 |
Luggage capacity max. (seats down) in l | 1,430 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 2,400 |
Trailer load 12% (braked) in kg | 2,400 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,993 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 375 (510)/6,250 |
Engine torque (Nm) at 1/min | 650/2,750-5,500 |
Compression ratio : 1 | 9.3 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 3.8 |
Combined in l/100 km | 10.8-10.5 |
---|---|
CO2 combined emissions in g/km | 247-238 |
Tank capacity, approx. in l | 65 |
Tyre dimensions front | 255/40ZR21 |
---|---|
Tyre dimensions rear | 265/40ZR21 |
Wheel dimensions and material front | 9,5 J x 21 inches, EH2 light-alloy |
Wheel dimensions and material rear | 10 J x 21 inches, EH2 light-alloy |
Unladen weight EU in kg | 2,085 |
---|---|
Max. permissible weight in kg | 2,500 |
Permitted load in kg | 490 |
Permitted axle load front/rear in kg | 1,185/1,425 |
Luggage capacity min. (seats up) in l | 525 |
Luggage capacity max. (seats down) in l | 1,430 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 2,400 |
Trailer load 12% (braked) in kg | 2,400 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,993 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 353 (480)/6,250 |
Engine torque (Nm) at 1/min | 620/2,750-5,450 |
Compression ratio : 1 | 9.3 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.0 |
Combined in l/100 km | 10.8-10.5 |
---|---|
CO2 combined emissions in g/km | 247-238 |
Tank capacity, approx. in l | 65 |
Tyre dimensions front | 255/45 ZR20 |
---|---|
Tyre dimensions rear | 265/45 ZR20 |
Wheel dimensions and material front | 9 J x 20 inches, EH2 light-alloy |
Wheel dimensions and material rear | 10 J x 20 inches, EH2 light-alloy |
Unladen weight EU in kg | 1,995 |
---|---|
Max. permissible weight in kg | 2,500 |
Permitted load in kg | 580 |
Permitted axle load front/rear in kg | 1,220/1,425 |
Luggage capacity min. (seats up) in l | 525 |
Luggage capacity max. (seats down) in l | 1,430 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 2,400 |
Trailer load 12% (braked) in kg | 2,400 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2.998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 265 (360)/5,200-6,500 |
Engine torque (Nm) at 1/min | 500/1,900-5,000 |
Compression ratio : 1 | 10.2 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.9 |
Combined in l/100 km | 9.5-8.7 |
---|---|
CO2 combined emissions in g/km | 215-198 |
Tank capacity, approx. in l | 65 |
Tyre dimensions front | 245/45 R20 103 W XL |
---|---|
Tyre dimensions rear | 275/40 R20 106 W XL |
Wheel dimensions and material front | 8 J x 20 inches, light-alloy |
Wheel dimensions and material rear | 9.5 J x 20 inches, light-alloy |
Unladen weight EU in kg | 2,095 |
---|---|
Max. permissible weight in kg | 2,560 |
Permitted load in kg | 540 |
Permitted axle load front/rear in kg | 1,230/1,430 |
Luggage capacity min. (seats up) in l | 525 |
Luggage capacity max. (seats down) in l | 1,430 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 2,400 |
Trailer load 12% (braked) in kg | 2,400 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,993 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 250 (340)/4,400 |
Engine torque (Nm) at 1/min | 700/1,750-2,250 |
Compression ratio : 1 | 16.5 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.9 |
Combined in l/100 km | 7.3-6.6 |
---|---|
CO2 combined emissions in g/km | 190-171 |
Tank capacity, approx. in l | 68 |
Tyre dimensions front | 245/45 R20 103 W XL |
---|---|
Tyre dimensions rear | 275/40 R20 106 W XL |
Wheel dimensions and material front | 8 J x 20 inches, light-alloy |
Wheel dimensions and material rear | 9.5 J x 20 inches, light-alloy |
Fuel consumption and CO2 emissions of the BMW X4 M Automobiles.
BMW X4 M Competition:
Fuel consumption in l/100 km (combined): 10.8–10.5
CO2 emissions in g/km (combined): 247–238BMW X4 M:
Fuel consumption in l/100 km (combined): 10.8–10.5
CO2 emissions in g/km (combined): 247–238BMW X4 M40i:
Fuel consumption in l/100 km (combined): 9.5-8.7
CO2 emissions in g/km (combined): 215–198BMW X4 M40d:
Fuel consumption in l/100 km (combined): 7.3–6.6
CO2 emissions in g/km (combined): 190–171Official data on fuel consumption and CO2 emissions were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp
