TECHNICAL DATA FOR THE BMW 4 SERIES GRAN COUPÉ.


Powertrain type	Electric
Power in kW (hp)	250 (340)
Torque in Nm	430
Transmission	1-speed, automatic
Drivetrain	Rear-wheel drive


(Nominal) power/30-minutes-power in kW (hp)	250 (340) / 105 (143)
(Nominal) torque in Nm	430


Acceleration 0–100 km/h in s	5.6
Electric top speed in km/h	190

¹
CO2 emissions, combined WLTP in g/km	0
Energy consumption, combined WLTP in kWh/100 km	19.1 - 16.1
Electric range, WLTP in km ²	492 - 590

³
Battery capacity in kWh	81.1
Added range after 10 minutes of high-power charging in km ³	154 - 197
Maximum charging power AC in kW	11 (-)
Charging time AC 0–100% in h	8.5 (-)
Maximum charging power DC in kW	205
Charging time DC 10–80% in h	30


4,783 mm
1,852 mm
1,448 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,448
Width incl. mirrors (driver / passenger side) in mm	2,073 (1,042 / 1,031)
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	2,125
Permissible gross weight in kg	2,605
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290

⁶
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	140 (190)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

⁶
Cylinders	4
Displacement in cm³	1,995
Nominal power in kW (hp)/1/min	140 (190) / 4,000
Nominal torque in Nm/1/min	400 / 1,750 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	7.6
Top speed in km/h	233

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	6–5.3
CO2 emissions, combined WLTP in g/km	156–139
Pass-by noise in dB(A)	70 ⁷
Stationary noise level in dB(A) / 1/min	72/3,000 ⁷

³
Battery capacity in kWh	0.4

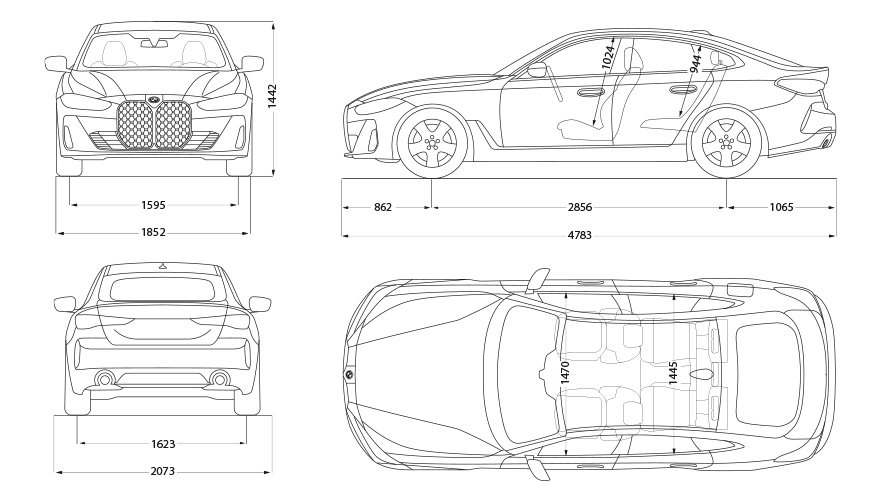

4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,835
Permissible gross weight in kg	2,315
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	210 (286)
Torque in Nm	650
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

⁶
Cylinders	6
Displacement in cm³	2,993
Nominal power in kW (hp)/1/min	210 (286) / 4,000
Nominal torque in Nm/1/min	650 / 1,500 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	5.3
Top speed in km/h	250

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	6.3–5.7
CO2 emissions, combined WLTP in g/km	166–151
Pass-by noise in dB(A)	70 ⁷
Stationary noise level in dB(A) / 1/min	73/3,000 ⁷

³
Battery capacity in kWh	0.4


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,920
Permissible gross weight in kg	2,400
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,800 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Petrol – 48 Volt Mild-Hybrid
Power in kW (hp)	275 (374)
Torque in Nm	500
Drivetrain	All-wheel drive

⁶
Cylinders	6
Displacement in cm³	2,998
Nominal power in kW (hp)/1/min	275 (374) / 5,500 - 6,500
Nominal torque in Nm/1/min	500 / 1,900 - 5,000


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	4.7
Top speed in km/h	250

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	8.8–8.2
CO2 emissions, combined WLTP in g/km	199–186
Pass-by noise in dB(A)	71 ⁷
Stationary noise level in dB(A) / 1/min	86/3,750 ⁷

³
Battery capacity in kWh	0.4


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,900
Permissible gross weight in kg	2,380
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,800 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Petrol
Power in kW (hp)	135 (184)
Torque in Nm	300
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

⁶
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	135 (184) / 5,000 - 6,500
Nominal torque in Nm/1/min	300 / 1,350 - 4,000


Acceleration 0–100 km/h in s	7.9
Top speed in km/h	235

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	7.3 - 6.3
CO2 emissions, combined WLTP in g/km	166 - 143


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073 (1,042 / 1,031)
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,695
Permissible gross weight in kg	2,175
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Petrol
Power in kW (hp)	180 (245)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

⁶
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	180 (245) / 4,500 - 6,500
Nominal torque in Nm/1/min	400 / 1,600 - 4,000


Acceleration 0–100 km/h in s	6.2
Top speed in km/h	250

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	7.6 - 6.8
CO2 emissions, combined WLTP in g/km	173 - 156


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073 (1,042 / 1,031)
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,720
Permissible gross weight in kg	2,200
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59


Powertrain type	Electric
Power in kW (hp)	400 (544)
Torque in Nm	795
Transmission	1-speed, automatic
Drivetrain	All-wheel drive


(Nominal) power/30-minutes-power in kW (hp)	400 (544) / 125 (170)
(Nominal) torque in Nm	795


Acceleration 0–100 km/h in s	3.9
Electric top speed in km/h	225

¹
CO2 emissions, combined WLTP in g/km	0
Energy consumption, combined WLTP in kWh/100 km	21.9–17.6
Electric range, WLTP in km ²	416–520
Pass-by noise in dB(A)	66 ⁷

³
Battery capacity in kWh	81.1
Added range after 10 minutes of high-power charging in km ³	–
Maximum charging power AC in kW	11 (-)
Charging time AC 0–100% in h	8:30
Maximum charging power DC in kW	205
Charging time DC 10–80% in h	0:30


4,783 mm
1,852 mm
1,448 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,448
Width incl. mirrors (driver / passenger side) in mm	2,073
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	2,290
Permissible gross weight in kg	2,735
Payload in kg	520
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290


Powertrain type	Electric
Power in kW (hp)	210 (286)
Torque in Nm	400
Transmission	1-speed, automatic
Drivetrain	Rear-wheel drive


(Nominal) power/30-minutes-power in kW (hp)	210 (286) / 80 (109)
(Nominal) torque in Nm	400


Acceleration 0–100 km/h in s	6
Electric top speed in km/h	190

¹
CO2 emissions, combined WLTP in g/km	0
Energy consumption, combined WLTP in kWh/100 km	18.7 - 15.8
Electric range, WLTP in km ²	406 - 483

³
Battery capacity in kWh	67
Added range after 10 minutes of high-power charging in km ³	144 - 182
Maximum charging power AC in kW	11 (-)
Charging time AC 0–100% in h	7 (-)
Maximum charging power DC in kW	180
Charging time DC 10–80% in h	32


4,783 mm
1,852 mm
1,448 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,448
Width incl. mirrors (driver / passenger side) in mm	2,073 (1,042 / 1,031)
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	2,065
Permissible gross weight in kg	2,545
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290

⁶
Powertrain type	Petrol – 48 Volt Mild-Hybrid
Power in kW (hp)	275 (374)
Torque in Nm	500
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

⁶
Cylinders	6
Displacement in cm³	2,998
Nominal power in kW (hp)/1/min	275 (374) / 5,500 - 6,500
Nominal torque in Nm/1/min	500 / 1,900 - 5,000


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	5
Top speed in km/h	250

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	8.2 - 7.6
CO2 emissions, combined WLTP in g/km	185 - 172

³
Battery capacity in kWh	0.4


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073 (1,042 / 1,031)
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,840
Permissible gross weight in kg	2,320
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,800 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Petrol
Power in kW (hp)	135 (184)
Torque in Nm	300
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

⁶
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	135 (184) / 5,000 - 6,500
Nominal torque in Nm/1/min	300 / 1,350 - 4,000


Acceleration 0–100 km/h in s	7.9
Top speed in km/h	235

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	7.3 - 6.6
CO2 emissions, combined WLTP in g/km	166 - 150


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,695
Permissible gross weight in kg	2,175
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Petrol
Power in kW (hp)	180 (245)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

⁶
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	180 (245) / 4,500 - 6,500
Nominal torque in Nm/1/min	400 / 1,600 - 4,000


Acceleration 0–100 km/h in s	6.2
Top speed in km/h	250

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	7.6 - 6.6
CO2 emissions, combined WLTP in g/km	173 - 150


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073 (1,042 / 1,031)
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,720
Permissible gross weight in kg	2,200
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

⁶
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	140 (190)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

⁶
Cylinders	4
Displacement in cm³	1,995
Nominal power in kW (hp)/1/min	140 (190) / 4,000
Nominal torque in Nm/1/min	400 / 1,750 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	7.3
Top speed in km/h	235

^{6 ,}¹
Fuel consumption, combined WLTP in l/100 km	5.6–5
CO2 emissions, combined WLTP in g/km	146–131
Pass-by noise in dB(A)	70 ⁷
Stationary noise level in dB(A) / 1/min	72/3,000 ⁷

³
Battery capacity in kWh	0.4


4,783 mm
1,852 mm
1,442 mm
Length in mm	4,783
Width in mm	1,852
Height in mm	1,442
Width incl. mirrors (driver / passenger side) in mm	2,073
Wheelbase in mm	2,856
Vehicle curb weight in kg ⁴	1,780
Permissible gross weight in kg	2,260
Payload in kg	555
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁵	1,600 / 75
Luggage capacity in l	470 - 1,290
Tank capacity in l	59

1 Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

2 Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

3 The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

4 The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

5 Trailer load depends on the vehicle options

6 Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 1151/2017. Unleaded RON 91 and higher with a maximum ethanol content of 25% (E25) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

7 The values measured in accordance with UN/ECE Regulation No. 51/EU Regulation 540/2014 are rounded.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Find out more

Consumption and CO2 emissions.

BMW 430i Gran Coupé^[1]: Fuel consumption, combined WLTP in l/100 km: 7.6 - 6.6; CO2 emissions, combined WLTP in g/km: 173 - 150

^[1] Provisional figures; any missing figures were unavailable at the time of publication.

Electric cars

Charging an electric car and range

Shop Online

Parts & Accessories

Service & Workshop

Technology & Innovation

Website currently not fully available

4

THE NEW BMW 4 SERIES GRAN COUPÉ.

TECHNICAL DATA FOR THE BMW 4 SERIES GRAN COUPÉ.

BMW WHEELS & TYRES.

Consumption and CO2 emissions.
