TECHNICAL DATA FOR THE BMW 3 SERIES TOURING.

¹
Powertrain type	Petrol
Power in kW (hp)	180 (245)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	180 (245) / 4,500 - 6,500
Nominal torque in Nm/1/min	400 / 1,600 - 4,000


Acceleration 0–100 km/h in s	6
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	8.1
CO2 emissions, combined WLTP in g/km	182

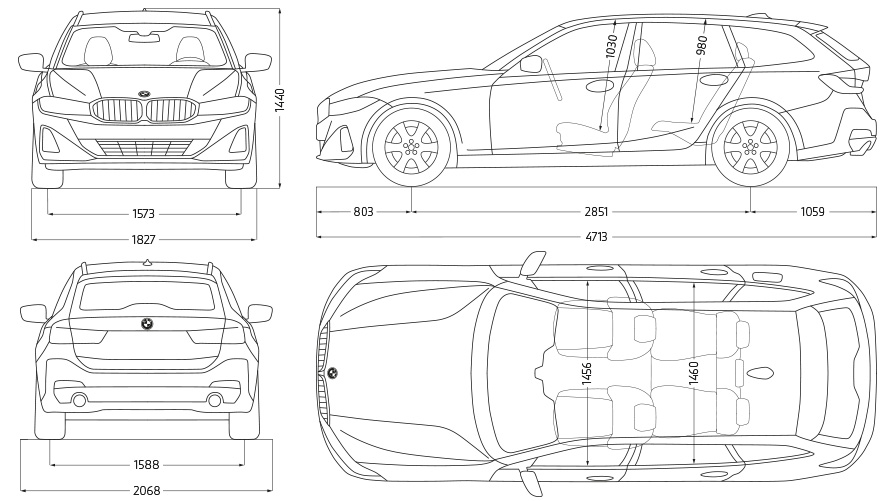

4,713 mm
1,827 mm
1,445 mm
Length in mm	4,713
Width in mm	1,827
Height in mm	1,445
Width incl. mirrors (driver / passenger side) in mm	2,068 (1,040 / 1,028)
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,735
Permissible gross weight in kg	2,255
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Petrol
Power in kW (hp)	275 (374)
Torque in Nm	500
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

¹
Cylinders	6
Displacement in cm³	2,998
Nominal power in kW (hp)/1/min	275 (374) / 5,500 - 6,500
Nominal torque in Nm/1/min	500 / 1,900 - 5,000


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	4.6
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	8.8 - 8.1
CO2 emissions, combined WLTP in g/km	198 - 182
Pass-by noise in dB(A)	67 ⁵
Stationary noise level in dB(A) / 1/min	90/3,750 ⁵


Battery capacity in kWh	0.4


mm
mm
mm
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,870
Permissible gross weight in kg	2,390
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

^{1 ,}⁶
Powertrain type	Petrol – Plug-in-Hybrid
Power in kW (hp)	215 (292)
Torque in Nm	420
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	135 (184) / 5,000 - 6,500
Nominal torque in Nm/1/min	300 / 1,350 - 4,000

^{6 ,}⁷
(Nominal) power/30-minutes-power in kW (hp)	80 (109)/55 (–)
(Nominal) torque in Nm	265


Acceleration 0–100 km/h in s	6
Top speed in km/h	230
Electric top speed in km/h	140

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km ⁸	1.1 - 0.9
CO2 emissions, combined WLTP in g/km ⁸	24 - 20
Energy consumption, combined WLTP in kWh/100 km ⁸	23–21.4
Electric range, WLTP in km ⁹	87–97
Pass-by noise in dB(A)	68 ⁵
Stationary noise level in dB(A) / 1/min	76/3,750 ⁵

¹⁰
Battery capacity in kWh	19.5
Charging time AC 0–100% in h	2:15


4,713 mm
1,827 mm
1,448 mm
Length in mm	4,713
Width in mm	1,827
Height in mm	1,448
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,970
Permissible gross weight in kg	2,420
Payload in kg	525
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,500 / 75
Luggage capacity in l	410 - 1,420
Tank capacity in l	40

¹
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	210 (286)
Torque in Nm	650
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

¹
Cylinders	6
Displacement in cm³	2,993
Nominal power in kW (hp)/1/min	210 (286) / 4,000
Nominal torque in Nm/1/min	650 / 1,500 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	5.2
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	6.5 - 5.8
CO2 emissions, combined WLTP in g/km	171 - 153
Pass-by noise in dB(A)	65 ⁵
Stationary noise level in dB(A) / 1/min	73/3,000 ⁵

¹⁰
Battery capacity in kWh	0.4


mm
mm
1,445 mm
Height in mm	1,445
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,900
Permissible gross weight in kg	2,400
Payload in kg	575
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Petrol
Power in kW (hp)	135 (184)
Torque in Nm	300
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	135 (184) / 5,000 - 6,500
Nominal torque in Nm/1/min	300 / 1,350 - 4,000


Acceleration 0–100 km/h in s	7.6
Top speed in km/h	230

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	7.6–6.8
CO2 emissions, combined WLTP in g/km	170
Pass-by noise in dB(A)	66 ⁵
Stationary noise level in dB(A) / 1/min	86/3,750 ⁵


mm
mm
1,440 mm
Height in mm	1,440
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,660
Permissible gross weight in kg	2,180
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,600 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

^{1 ,}⁶
Powertrain type	Petrol – Plug-in-Hybrid
Power in kW (hp)	215 (292) ¹¹
Torque in Nm	420 ¹¹
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	135 (184) / 5,000 - 6,500
Nominal torque in Nm/1/min	300 / 1,350 - 4,000

^{6 ,}⁷
(Nominal) power/30-minutes-power in kW (hp)	80 (109)/55 (–)
(Nominal) torque in Nm	265


Acceleration 0–100 km/h in s	6
Top speed in km/h	225
Electric top speed in km/h	140

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km ⁸	1.2 - 1
CO2 emissions, combined WLTP in g/km ⁸	26–23
Energy consumption, combined WLTP in kWh/100 km ⁸	24.4–22.9
Electric range, WLTP in km ⁹	84–91
Pass-by noise in dB(A)	68 ⁵
Stationary noise level in dB(A) / 1/min	76/3,750 ⁵

¹⁰
Battery capacity in kWh	19.5
Maximum charging power AC in kW	11
Charging time AC 0–100% in h	2:15


4,713 mm
1,827 mm
1,448 mm
Length in mm	4,713
Width in mm	1,827
Height in mm	1,448
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	2,025
Permissible gross weight in kg	2,475
Payload in kg	525
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,500 / 75
Luggage capacity in l	410 - 1,420
Tank capacity in l	40

¹
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	110 (150)
Torque in Nm	320
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	4
Displacement in cm³	1,995
Nominal power in kW (hp)/1/min	110 (150) / 4,000
Nominal torque in Nm/1/min	320 / 1,500 - 3,000


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	8.8
Top speed in km/h	213

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	5.8–5.1
CO2 emissions, combined WLTP in g/km	152–135
Pass-by noise in dB(A)	66 ⁵
Stationary noise level in dB(A) / 1/min	71/3,000 ⁵

¹⁰
Battery capacity in kWh	0.4


mm
mm
1,440 mm
Height in mm	1,440
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,735
Permissible gross weight in kg	2,225
Payload in kg	565
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	140 (190)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

¹
Cylinders	4
Displacement in cm³	1,995
Nominal power in kW (hp)/1/min	140 (190) / 4,000
Nominal torque in Nm/1/min	400 / 1,750 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	7.5
Top speed in km/h	225

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	6.1–5.4
CO2 emissions, combined WLTP in g/km	153–134
Pass-by noise in dB(A)	67 ⁵
Stationary noise level in dB(A) / 1/min	72/3,000 ⁵

¹⁰
Battery capacity in kWh	0.4


mm
mm
1,445 mm
Height in mm	1,445
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,800
Permissible gross weight in kg	2,320
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	210 (286)
Torque in Nm	650
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	6
Displacement in cm³	2,993
Nominal power in kW (hp)/1/min	210 (286) / 4,000
Nominal torque in Nm/1/min	650 / 1,500 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	5.5
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	6.2 - 5.5
CO2 emissions, combined WLTP in g/km	163 - 145

¹⁰
Battery capacity in kWh	0.4


4,713 mm
1,827 mm
1,440 mm
Length in mm	4,713
Width in mm	1,827
Height in mm	1,440
Width incl. mirrors (driver / passenger side) in mm	2,068 (1,040 / 1,028)
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,845
Permissible gross weight in kg	2,345
Payload in kg	575
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Diesel – 48 Volt Mild-Hybrid
Power in kW (hp)	140 (190)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	4
Displacement in cm³	1,995
Nominal power in kW (hp)/1/min	140 (190) / 4,000
Nominal torque in Nm/1/min	400 / 1,750 - 2,500


(Nominal) power/30-minutes-power in kW (hp)	8 (11) / -
(Nominal) torque in Nm	25


Acceleration 0–100 km/h in s	7.2
Top speed in km/h	229

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	5.8–5.1
CO2 emissions, combined WLTP in g/km	153–134
Pass-by noise in dB(A)	67 ⁵
Stationary noise level in dB(A) / 1/min	72/3,000 ⁵

¹⁰
Battery capacity in kWh	0.4


mm
mm
1,440 mm
Height in mm	1,440
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,740
Permissible gross weight in kg	2,230
Payload in kg	565
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Petrol
Power in kW (hp)	115 (156)
Torque in Nm	250
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	115 (156) / 4,500 - 6,500
Nominal torque in Nm/1/min	250 / 1,300 - 4,300


Acceleration 0–100 km/h in s	8.8
Top speed in km/h	218

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	7.5–6.7
CO2 emissions, combined WLTP in g/km	168–151
Pass-by noise in dB(A)	67 ⁵
Stationary noise level in dB(A) / 1/min	89/3,375 ⁵


mm
mm
1,440 mm
Height in mm	1,440
Width incl. mirrors (driver / passenger side) in mm	2,068
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,650
Permissible gross weight in kg	2,170
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,300 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Petrol
Power in kW (hp)	180 (245)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	Rear-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	180 (245) / 4,500 - 6,500
Nominal torque in Nm/1/min	400 / 1,600 - 4,000


Acceleration 0–100 km/h in s	6.1
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	7.6 - 6.8
CO2 emissions, combined WLTP in g/km	171 - 154


4,713 mm
1,827 mm
1,440 mm
Length in mm	4,713
Width in mm	1,827
Height in mm	1,440
Width incl. mirrors (driver / passenger side) in mm	2,068 (1,040 / 1,028)
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,675
Permissible gross weight in kg	2,195
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,600 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Diesel
Power in kW (hp)	180 (245)

¹


(Nominal) power/30-minutes-power in kW (hp)	8 (11)/ -


Acceleration 0–100 km/h in s	4.5
Top speed in km/h	218

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	6.8 - 6.1
CO2 emissions, combined WLTP in g/km	177 - 161
Pass-by noise in dB(A)	69 ⁵
Stationary noise level in dB(A) / 1/min	74/3,300 ⁵


mm
mm
1,445 mm
Height in mm	1,445
Width incl. mirrors (driver / passenger side) in mm	2,068
Permissible gross weight in kg	2,430
Payload in kg	560

¹
Powertrain type	Petrol
Power in kW (hp)	180 (245)

¹


Acceleration 0–100 km/h in s	5.8
Top speed in km/h	219

^{1 ,}²


mm
mm
mm

¹
Powertrain type	Petrol
Power in kW (hp)	180 (245)
Torque in Nm	400
Transmission	8-speed, automatic
Drivetrain	All-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	180 (245) / 4,500 - 6,500
Nominal torque in Nm/1/min	400 / 1,600 - 4,000


Acceleration 0–100 km/h in s	6
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	8.1–7.3
CO2 emissions, combined WLTP in g/km	182–164
Pass-by noise in dB(A)	67 ⁵
Stationary noise level in dB(A) / 1/min	82/3,375 ⁵


mm
1,827 mm
1,445 mm
Width in mm	1,827
Height in mm	1,445
Width incl. mirrors (driver / passenger side) in mm	2,068 (1,040 / 1,028)
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,735
Permissible gross weight in kg	2,255
Payload in kg	595
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800 / 75
Luggage capacity in l	500 - 1,510
Tank capacity in l	59

¹
Powertrain type	Petrol
Power in kW (hp)	180 (245)
Torque in Nm	400
Transmission	8 - automatic
Drivetrain	All-wheel drive

¹
Cylinders	4
Displacement in cm³	1,998
Nominal power in kW (hp)/1/min	180 (245)/4,500–6,500
Nominal torque in Nm/1/min	400/1,600–4,000


Acceleration 0–100 km/h in s	5.7
Top speed in km/h	250

^{1 ,}²
Fuel consumption, combined WLTP in l/100 km	7.7–7
CO2 emissions, combined WLTP in g/km	175–158


4,713 mm
1,827 mm
1,445 mm
Length in mm	4,713
Width in mm	1,827
Height in mm	1,445
Wheelbase in mm	2,851
Vehicle curb weight in kg ³	1,670
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg ⁴	1,800/75
Luggage capacity in l	480
Tank capacity in l	59

1 Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 1151/2017. Unleaded RON 91 and higher with a maximum ethanol content of 25% (E25) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

2 Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

3 The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

4 Trailer load depends on the vehicle options

5 The values measured in accordance with UN/ECE Regulation No. 51/EU Regulation 540/2014 are rounded.

6 For plug-in hybrid: Electric drive depending on battery charging level.

7 For plug-in hybrid: At temperatures below freezing, the fully electric drive system is only available after a few kilometres of driving, once the battery has heated to operational temperature.

8 For plug-in hybrid: Weighted, combined (EC AC Charge Weighted)

9 Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

10 The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

11 Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value). Electric drive depending on battery charging level.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Find out more

Fuel consumption and CO2 emissions.

BMW 330e xDrive Touring : Fuel consumption, combined WLTP in l/100 km: 1.2 - 1; CO2 emissions, combined WLTP in g/km: 26–23

Vehicle height with serial components 1,451 mm.

Electric cars

Charging an electric car and range

Shop Online

Parts & Accessories

Service & Workshop

Technology & Innovation

Website currently not fully available

THE NEW BMW 3 SERIES TOURING.

TECHNICAL DATA FOR THE BMW 3 SERIES TOURING.

BMW WHEELS & TYRES.

Fuel consumption and CO2 emissions.
