BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA.
Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Touring.
THE 5BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA.
Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Touring.

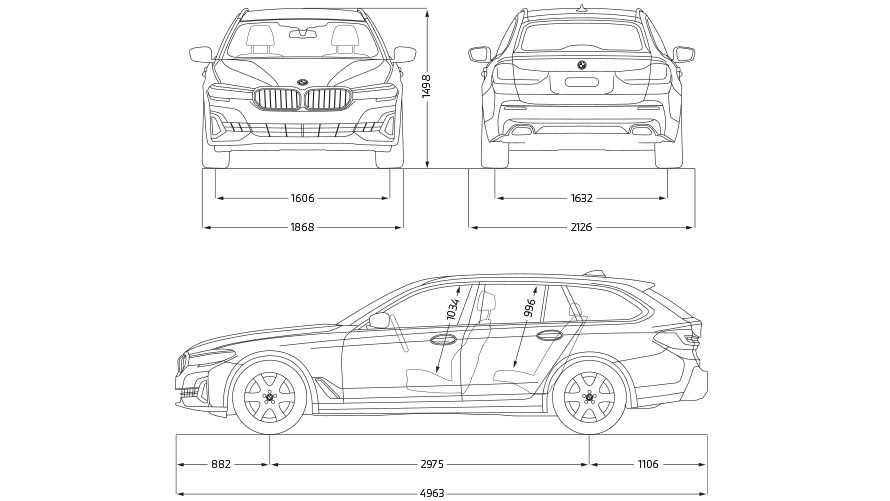

BMW 5 SERIES TOURING: TECHNICAL DATA.
Select model
| Unladen weight EU in kg | 1,790 |
|---|---|
| Max. permissible weight in kg | 2,410 |
| Permitted load in kg | 695 |
| Permitted axle load front/rear in kg | 1,100/1,410 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 290/1,350-4,250 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 225 |
|---|---|
| Acceleration 0–100 km/h in s | 8.3 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 7.5-6.6 |
|---|---|
| CO2 combined emissions in g/km | 170-150 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,805 |
|---|---|
| Max. permissible weight in kg | 2,425 |
| Permitted load in kg | 695 |
| Permitted axle load front/rear in kg | 1,120/1,430 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 185 (252)/5,200-6,500 |
| Engine torque (Nm) at 1/min | 350/1,450-4,800 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 6.7 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 7.4-6.5 |
|---|---|
| CO2 combined emissions in g/km | 169-148 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,865 |
|---|---|
| Max. permissible weight in kg | 2,490 |
| Permitted load in kg | 700 |
| Permitted axle load front/rear in kg | 1,170/1,440 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 185 (252)/5,200-6,500 |
| Engine torque (Nm) at 1/min | 350/1,450-4,800 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 6.6 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 7.9-7.0 |
|---|---|
| CO2 combined emissions in g/km | 179-160 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,925 |
|---|---|
| Max. permissible weight in kg | 2,535 |
| Permitted load in kg | 685 |
| Permitted axle load front/rear in kg | 1,240/1,450 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 245 (333)/5,500-6,250 |
| Engine torque (Nm) at 1/min | 450/1,600-4,800 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.2 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 8.5-7.7 |
|---|---|
| CO2 combined emissions in g/km | 195-177 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,855 |
|---|---|
| Max. permissible weight in kg | 2,470 |
| Permitted load in kg | 690 |
| Permitted axle load front/rear in kg | 1,125/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 140 (190)/4,000 |
| Engine torque (Nm) at 1/min | 400/1,750-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 225 |
|---|---|
| Acceleration 0–100 km/h in s | 7.6 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 5,8-5,0 |
|---|---|
| CO2 combined emissions in g/km | 151-132 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,915 |
|---|---|
| Max. permissible weight in kg | 2,530 |
| Permitted load in kg | 690 |
| Permitted axle load front/rear in kg | 1,180/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 140 (190)/4,000 |
| Engine torque (Nm) at 1/min | 400/1,750-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 222 |
|---|---|
| Acceleration 0–100 km/h in s | 7.6 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 6.0-5.3 |
|---|---|
| CO2 combined emissions in g/km | 157-138 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,940 |
|---|---|
| Max. permissible weight in kg | 2,550 |
| Permitted load in kg | 685 |
| Permitted axle load front/rear in kg | 1,210/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 210 (286)/4,000 |
| Engine torque (Nm) at 1/min | 650/1,500-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.7 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 6.0-5.4 |
|---|---|
| CO2 combined emissions in g/km | 157-141 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm |
| Unladen weight EU in kg | 2,000 |
|---|---|
| Max. permissible weight in kg | 2,610 |
| Permitted load in kg | 685 |
| Permitted axle load front/rear in kg | 1,260/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 210 (286)/4,000 |
| Engine torque (Nm) at 1/min | 650/1,500-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.6 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 6.5-5.8 |
|---|---|
| CO2 combined emissions in g/km | 169-151 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 2,000 |
|---|---|
| Max. permissible weight in kg | 2,615 |
| Permitted load in kg | 690 |
| Permitted axle load front/rear in kg | 1,270/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 560 |
| Luggage capacity max. (seats down or roof up) in l | 1,700 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 250 (340)/4,400 |
| Engine torque (Nm) at 1/min | 700/1,750-2,250 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.8 |
| Top speed electrical in km/h | - |
| Combined in l/100 km | 6.6-5.8 |
|---|---|
| CO2 combined emissions in g/km | 172-153 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,975 |
|---|---|
| Max. permissible weight in kg | 2,550 |
| Permitted load in kg | 650 |
| Permitted axle load front/rear in kg | 1,090/1,540 |
| Luggage capacity min. (seats up or roof down) in l | 430 |
| Luggage capacity max. (seats down or roof up) in l | 1,560 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,700 |
| Trailer load 12% (braked) in kg | 1,700 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1.998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-4,000 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 225 |
|---|---|
| Acceleration 0–100 km/h in s | 6.1 |
| Top speed electrical in km/h | 140 |
| Combined in l/100 km | 1.9-1.5 |
|---|---|
| CO2 combined emissions in g/km | 44-35 |
| Electricity consumption, combined in kWh/100km | 18.6-17.1 |
| Tank capacity, approx. in l | 46 |
| Tyre dimensions front | 245/45 R18 100 Y XL |
|---|---|
| Tyre dimensions rear | 245/45 R18 100 Y XL |
| Wheel dimensions and material front | 8 J x 18 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 18 inches, light-alloy |
| Electric range in km | 51-57 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 12 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | N/A |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | 3.6 |
| Electric engine power kW (hp) at 1/min | 80 (109)/3,140 |
|---|---|
| Electric Engine torque (Nm) at 1/min | 265/100-2,500 |
| Combined power kW (hp) | 215 (292) |
|---|---|
| Combined torque Nm | 420 |
| Unladen weight EU in kg | 2,035 |
|---|---|
| Max. permissible weight in kg | 2,610 |
| Permitted load in kg | 650 |
| Permitted axle load front/rear in kg | 1,140/1,550 |
| Luggage capacity min. (seats up or roof down) in l | 430 |
| Luggage capacity max. (seats down or roof up) in l | 1,560 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1.998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-4,000 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 225 |
|---|---|
| Acceleration 0–100 km/h in s | 6.1 |
| Top speed electrical in km/h | 140 |
| Combined in l/100 km | 2.3-1.8 |
|---|---|
| CO2 combined emissions in g/km | 51-41 |
| Electricity consumption, combined in kWh/100km | 20.0-18.5 |
| Tank capacity, approx. in l | 46 |
| Tyre dimensions front | 245/45 R18 100 Y XL |
|---|---|
| Tyre dimensions rear | 245/45 R18 100 Y XL |
| Wheel dimensions and material front | 8 J x 18 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 18 inches, light-alloy |
| Electric range in km | 47-53 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 12 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | N/A |
| Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h | 3.6 |
| Electric engine power kW (hp) at 1/min | 80 (109)/3,140 |
|---|---|
| Electric Engine torque (Nm) at 1/min | 265/100-2,500 |
| Combined power kW (hp) | 215 (292) |
|---|---|
| Combined torque Nm | 420 |
FUEL CONSUMPTION AND CO2 EMISSIONS.
BMW 530e** Touring:
Fuel consumption in l/100 km (combined): 1.9–1.5
CO2 emissions in g/km (combined): 43–35
Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp
** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
Fuel consumption and CO2 emissions.
BMW 530e Touring:
Fuel consumption in l/100 km (combined): 1.9-1.5
CO2 emissions in g/km (combined): 44-35Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.com.cy/wltp.
** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
