TECHNICAL DATA OF THE BMW 3 SERIES GRAN TURISMO.

Weight
Unladen weight EU in kg
1.675
Max. permissible weight in kg
2.17
Permitted load in kg
570
Permitted axle load front/rear in kg
975/1,255
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1.6
Trailer load (unbraked) in kg
695
Trailer load 8% (braked) in kg
1,600
Trailer load 12% (braked) in kg
1,500
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
135 (184)/5,000-6,500
Engine torque (Nm) at 1/min
270/1,350-4,600
Compression ratio : 1
11.0
Performance
Top speed in km/h
229
Acceleration 0–100 km/h in s
8.1
Fuel consumption
Urban in l/100 km
7.8-7.7
Extra-urban in l/100 km
5.4-5.3
Combined in l/100 km
6.3-6.2
CO2 combined emissions in g/km
143-141
Tank capacity, approx. in l
60
Wheels
Tyre dimensions front
225/55 R17 97V
Tyre dimensions rear
225/55 R17 97V
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,735 [1,750]
Max. permissible weight in kg
2,230 [2,245]
Permitted load in kg
570 [570]
Permitted axle load front/rear in kg
1,030/1,275 [1,040/1,275]
Luggage capacity min. (seats up or roof down) in l
520 [520]
Luggage capacity max. (seats down or roof up) in l
1,600 [1,600]
Trailer load (unbraked) in kg
750 [750]
Trailer load 8% (braked) in kg
1,800 [1,800]
Trailer load 12% (braked) in kg
1,700 [1,700]
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
135 (184)/5,000-6,500
Engine torque (Nm) at 1/min
270/1,350-4,600
Compression ratio : 1
11.0
Performance
Top speed in km/h
227 [224]
Acceleration 0–100 km/h in s
8.1 [8.4]
Fuel consumption
Urban in l/100 km
8.1-8.0
Extra-urban in l/100 km
6.0-5.9
Combined in l/100 km
6.8-6.7
CO2 combined emissions in g/km
156-152
Tank capacity, approx. in l
60
Wheels
Tyre dimensions front
225/55 R17 97V
Tyre dimensions rear
225/55 R17 97V
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,700
Max. permissible weight in kg
2,190
Permitted load in kg
565
Permitted axle load front/rear in kg
980/1,275
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
745
Trailer load 8% (braked) in kg
1,700
Trailer load 12% (braked) in kg
1,600
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.1
Fuel consumption
Urban in l/100 km
8.0-7.6
Extra-urban in l/100 km
5.6
Combined in l/100 km
6.5-6.3
CO2 combined emissions in g/km
147-144
Tank capacity, approx. in l
60
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,765
Max. permissible weight in kg
2,255
Permitted load in kg
565
Permitted axle load front/rear in kg
1,050/1,275
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,700
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.2
Fuel consumption
Urban in l/100 km
8.5-8.3
Extra-urban in l/100 km
6.3-6.2
Combined in l/100 km
7.1-7.0
CO2 combined emissions in g/km
161-159
Tank capacity, approx. in l
60
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,745
Max. permissible weight in kg
2.24
Permitted load in kg
570
Permitted axle load front/rear in kg
1,025/1,275
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,700
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
240 (326)/5,500-6,500
Engine torque (Nm) at 1/min
450/1,380-5,000
Compression ratio : 1
11.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.1
Fuel consumption
Urban in l/100 km
9.9-9.7
Extra-urban in l/100 km
6.4-6.3
Combined in l/100 km
7.7-7.6
CO2 combined emissions in g/km
176-172
Tank capacity, approx. in l
60
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,805
Max. permissible weight in kg
2,295
Permitted load in kg
565
Permitted axle load front/rear in kg
1,090/1,275
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,800
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
240 (326)/5,500-6,500
Engine torque (Nm) at 1/min
450/1,380-5,000
Compression ratio : 1
11.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.0
Fuel consumption
Urban in l/100 km
10.6-10.3
Extra-urban in l/100 km
6.7-6.5
Combined in l/100 km
8.1-7.9
CO2 combined emissions in g/km
185-181
Tank capacity, approx. in l
60
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,690 [1,715]
Max. permissible weight in kg
2,185 [2,210]
Permitted load in kg
570 [570]
Permitted axle load front/rear in kg
970/1,300 [970/1,300]
Luggage capacity min. (seats up or roof down) in l
520 [520]
Luggage capacity max. (seats down or roof up) in l
1,600 [1,600]
Trailer load (unbraked) in kg
745 [745]
Trailer load 8% (braked) in kg
1,700 [1,700]
Trailer load 12% (braked) in kg
1,600 [1,600]
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (PS) at 1/min
110 (150)/4,000
Engine torque (Nm) at 1/min
320/1,750-3,000
Compression ratio : 1
16.5
Performance
Top speed in km/h
210 [210]
Acceleration 0–100 km/h in s
9.4 [9.3]
Fuel consumption
Urban in l/100 km
6.0 [5.4-5.3]
Extra-urban in l/100 km
4.6-4.5 [4.5-4.3]
Combined in l/100 km
5.2-5.1 [4.8-4.7]
CO2 combined emissions in g/km
135-133 [128-124]
Tank capacity, approx. in l
57
Wheels
Tyre dimensions front
225/55 R17 97V
Tyre dimensions rear
225/55 R17 97V
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,705 [1,725]
Max. permissible weight in kg
2,200 [2,220]
Permitted load in kg
570 [570]
Permitted axle load front/rear in kg
970/1,300 [970/1,300]
Luggage capacity min. (seats up or roof down) in l
520 [520]
Luggage capacity max. (seats down or roof up) in l
1,600 [1,600]
Trailer load (unbraked) in kg
745 [745]
Trailer load 8% (braked) in kg
1,800 [1,800]
Trailer load 12% (braked) in kg
1,600 [1,600]
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (PS) at 1/min
140 (190)/4,000
Engine torque (Nm) at 1/min
400/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
230 [226]
Acceleration 0–100 km/h in s
7.9 [7.8]
Fuel consumption
Urban in l/100 km
6.0-5.8 [5.4]
Extra-urban in l/100 km
4.6-4.5 [4.8-4.6]
Combined in l/100 km
5.1-5.0 [5.0-4.9]
CO2 combined emissions in g/km
135-131 [131-128]
Tank capacity, approx. in l
57
Wheels
Tyre dimensions front
225/55 R17 97V
Tyre dimensions rear
225/55 R17 97V
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,790
Max. permissible weight in kg
2,285
Permitted load in kg
570
Permitted axle load front/rear in kg
1,025/1,310
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,600
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (PS) at 1/min
140 (190)/4,000
Engine torque (Nm) at 1/min
400/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
225
Acceleration 0–100 km/h in s
7.8
Fuel consumption
Urban in l/100 km
6.1-6.0
Extra-urban in l/100 km
4.9-4.8
Combined in l/100 km
5.3-5.2
CO2 combined emissions in g/km
141-138
Tank capacity, approx. in l
57
Wheels
Tyre dimensions front
225/55 R17 97V
Tyre dimensions rear
225/55 R17 97V
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,790
Max. permissible weight in kg
2,285
Permitted load in kg
570
Permitted axle load front/rear in kg
1,030/1,310
Luggage capacity min. (seats up or roof down) in l
250
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,800
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (PS) at 1/min
190 (258)/4,000
Engine torque (Nm) at 1/min
560/1,500-3,000
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.7
Fuel consumption
Urban in l/100 km
6.7-6.6
Extra-urban in l/100 km
5.4-5.3
Combined in l/100 km
5.8-5.7
CO2 combined emissions in g/km
153-150
Tank capacity, approx. in l
57
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,845
Max. permissible weight in kg
2,340
Permitted load in kg
570
Permitted axle load front/rear in kg
1,080/1,310
Luggage capacity min. (seats up or roof down) in l
250
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,800
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (PS) at 1/min
190 (258)/4,000
Engine torque (Nm) at 1/min
560/1,500-3,000
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.4
Fuel consumption
Urban in l/100 km
7.3-7.2
Extra-urban in l/100 km
5.6-5.5
Combined in l/100 km
6.2-6.1
CO2 combined emissions in g/km
163-161
Tank capacity, approx. in l
57
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,855
Max. permissible weight in kg
2,350
Permitted load in kg
570
Permitted axle load front/rear in kg
1,095/1,310
Luggage capacity min. (seats up or roof down) in l
520
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
1,800
Trailer load 12% (braked) in kg
1,800
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (PS) at 1/min
230 (313)/4,400
Engine torque (Nm) at 1/min
630/1,500-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.9
Fuel consumption
Urban in l/100 km
7.8-7.7
Extra-urban in l/100 km
5.7-5.6
Combined in l/100 km
6.4
CO2 combined emissions in g/km
169-167
Tank capacity, approx. in l
57
Wheels
Tyre dimensions front
225/55 R17 97W
Tyre dimensions rear
225/55 R17 97W
Wheel dimensions and material front
8 J x 17 inches, light-alloy
Wheel dimensions and material rear
8 J x 17 inches, light-alloy

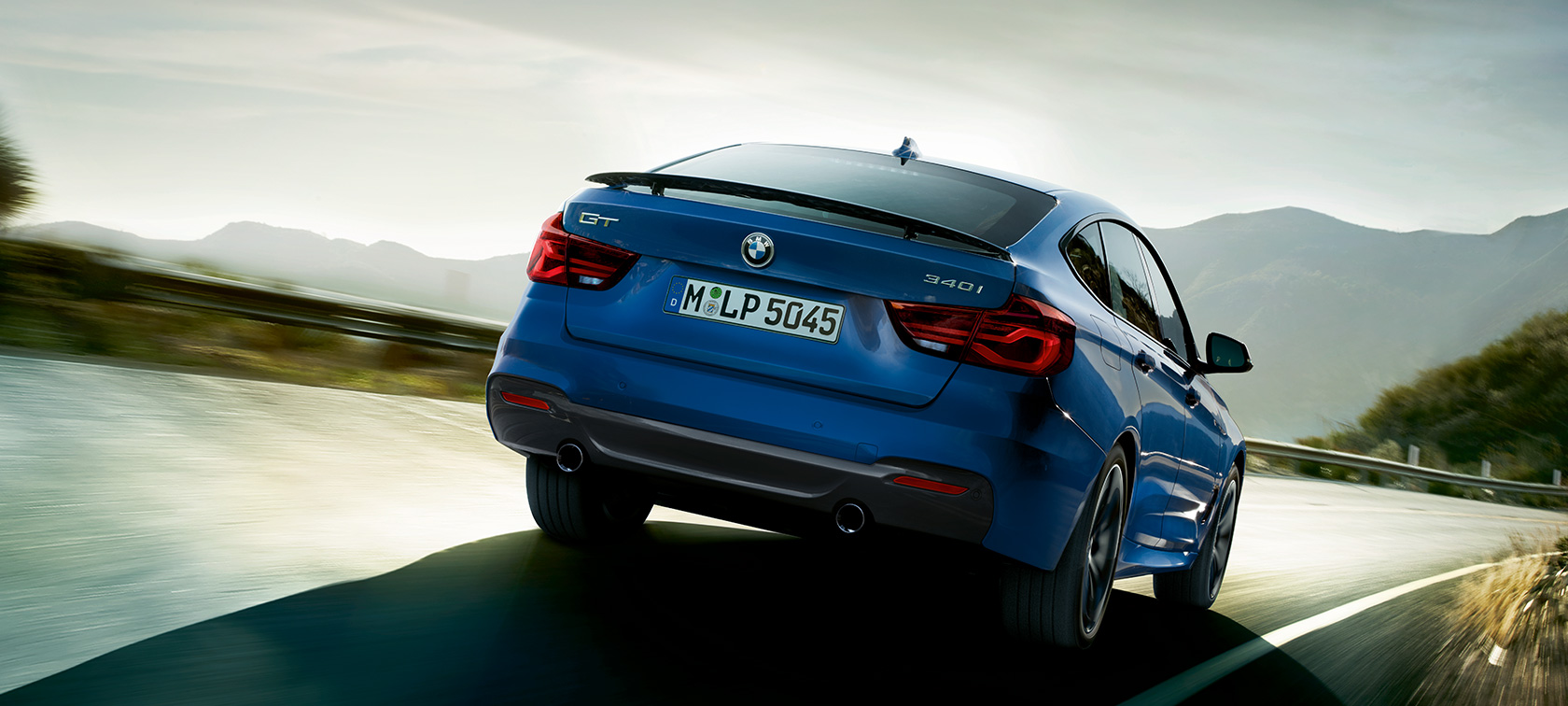

Fuel consumption and CO2 emissions of the BMW 3 Series Gran Turismo.

  • BMW 340i Gran Turismo:
    Fuel consumption in l/100 km (combined): 7.7–7.6
    CO2 emissions in g/km (combined): 176–172

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
